Step1: Product

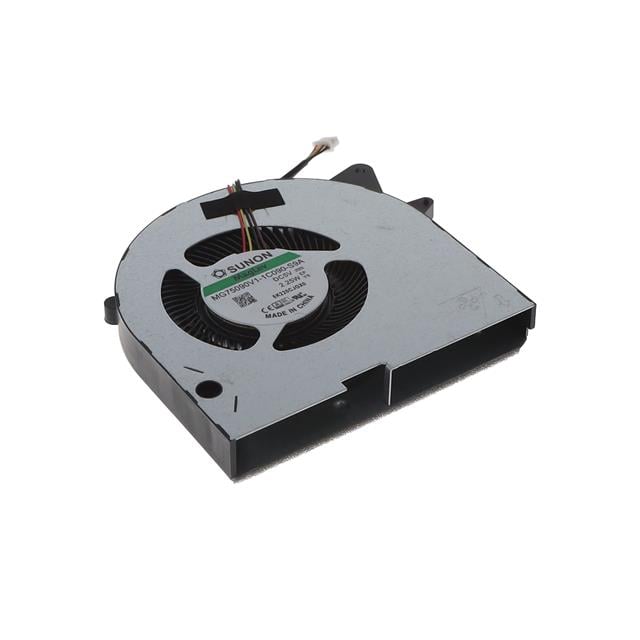

Sunon Fans 4555HQ/MG75090V1-1C090-S9A
Images are for reference only
Manufacturer
Manufacturer No
4555HQ/MG75090V1-1C090-S9A
Packaging
Box
Description
FAN BLOWER 80X11MM 5VDC RECT
Detailed Description
Fan Blower 5VDC Square/Rounded - 80mm L x 80mm H Vapo-Bearing™ 9.9 CFM (0.277m³/min) 4 Position Rectangular Connector
Datasheet
Payment
Delivery
Mfr
Sunon Fans
RPM
3400 RPM
Noise
41.7dB(A)
Width
11.00mm
Series
MagLev® MG
Weight
0.128 lb (58.06 g)
Air Flow
9.9 CFM (0.277m³/min)
Fan Type
Blower
Features
Auto Restart, PWM Control, Speed Sensor (Tach)
Packaging
Box
Termination
4 Position Rectangular Connector
Bearing Type
Vapo-Bearing™
Power (Watts)
2 W
Voltage Range
2.5 ~ 5VDC
Approval Agency
CE, CUR, TUV, UL
Static Pressure
0.670 in H2O (166.9 Pa)
Voltage - Rated
5VDC
Lifetime @ Temp.
60000 Hrs @ 40°C
Material - Blade
Liquid Crystal Polymer (LCP)
Material - Frame
Polybutylene Terephthalate (PBT)
Size / Dimension
Square/Rounded - 80mm L x 80mm H
Ingress Protection
-
Base Product Number
4555HQ
Current Rating (Amps)
0.400A
Operating Temperature
14 ~ 158°F (-10 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Sunon Fans |
| RPM | 3400 RPM |
| Noise | 41.7dB(A) |
| Width | 11.00mm |
| Series | MagLev® MG |
| Weight | 0.128 lb (58.06 g) |
| Air Flow | 9.9 CFM (0.277m³/min) |
| Fan Type | Blower |
| Features | Auto Restart, PWM Control, Speed Sensor (Tach) |
| Packaging | Box |
| Termination | 4 Position Rectangular Connector |
| Bearing Type | Vapo-Bearing™ |
| Power (Watts) | 2 W |
| Voltage Range | 2.5 ~ 5VDC |
| Approval Agency | CE, CUR, TUV, UL |
| Static Pressure | 0.670 in H2O (166.9 Pa) |
| Voltage - Rated | 5VDC |
| Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Material - Blade | Liquid Crystal Polymer (LCP) |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Size / Dimension | Square/Rounded - 80mm L x 80mm H |
| Ingress Protection | - |
| Base Product Number | 4555HQ |
| Current Rating (Amps) | 0.400A |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
