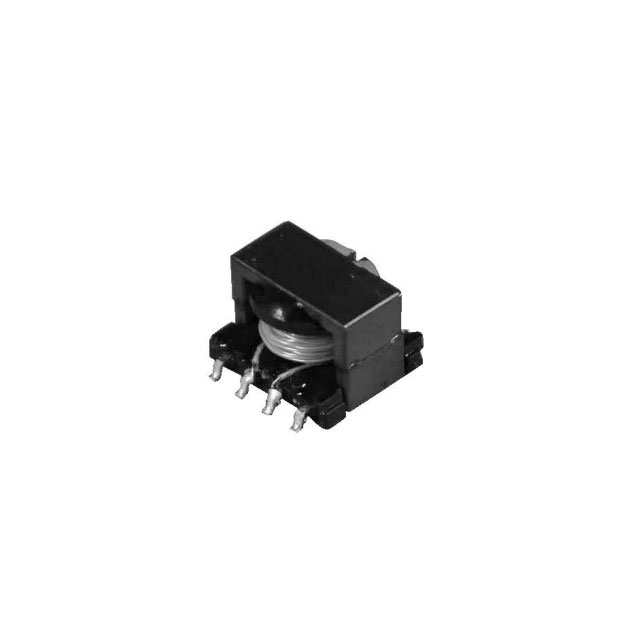

Sumida America Components Inc. CEER117-AX05-13-048
Images are for reference only
Manufacturer
Manufacturer No
CEER117-AX05-13-048
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
XFMR FLYBACK DC/DC CONV 59UH SMD
Detailed Description
Flyback Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 120kHz Surface Mount
Datasheet
Payment
Delivery
Type
For DC/DC Converters
Style
-
Series
-
Footprint
0.508" L x 0.449" W (12.90mm x 11.40mm)
Frequency
120kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
Flyback Converters
Manufacturer
Sumida America Components Inc.
Mounting Type
Surface Mount
Intended Chipset
ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV
Size / Dimension
0.449" L x 0.390" W (11.40mm x 9.90mm)
Voltage - Primary
12V
Voltage - Auxiliary
-
Voltage - Isolation
2500Vrms
Chipset Manufacturer
Broadcom, ROHM
Height - Seated (Max)
0.331" (8.40mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
59µH @ 100kHz, 240µH @ 100kHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Style | - |
| Series | - |
| Footprint | 0.508" L x 0.449" W (12.90mm x 11.40mm) |
| Frequency | 120kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | Flyback Converters |
| Manufacturer | Sumida America Components Inc. |
| Mounting Type | Surface Mount |
| Intended Chipset | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV |
| Size / Dimension | 0.449" L x 0.390" W (11.40mm x 9.90mm) |
| Voltage - Primary | 12V |
| Voltage - Auxiliary | - |
| Voltage - Isolation | 2500Vrms |
| Chipset Manufacturer | Broadcom, ROHM |
| Height - Seated (Max) | 0.331" (8.40mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 59µH @ 100kHz, 240µH @ 100kHz |
