STMicroelectronics VIPERGAN100TR

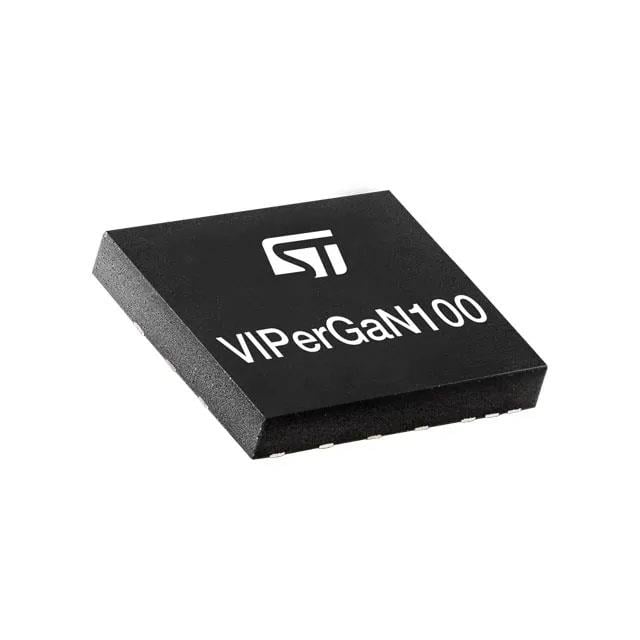

Images are for reference only
Manufacturer
Manufacturer No
VIPERGAN100TR
Quantity
3,502
Availability
In Stock
Package
16-VFQFN, 15 Leads, Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ADVANCED QUASI-RESONANT OFFLINE
Detailed Description
Converter Offline Forward, Secondary Side SR Topology 240kHz 16-QFN (5x6)
Datasheet
Payment
Delivery
Series
-
Topology
Forward, Secondary Side SR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Duty Cycle
50%
Manufacturer
STMicroelectronics
Mounting Type
Surface Mount
Power (Watts)
75 W
Package / Case
16-VFQFN, 15 Leads, Exposed Pad
Control Features
Soft Start
Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit, UVLO
Output Isolation
Isolated
Internal Switch(s)
Yes
Voltage - Start Up
15 V
Base Product Number
VIPERGAN100
Voltage - Breakdown
650V
Frequency - Switching
240kHz
Operating Temperature
-40°C ~ 150°C (TJ)
Supplier Device Package
16-QFN (5x6)
Voltage - Supply (Vcc/Vdd)
9V ~ 23V
