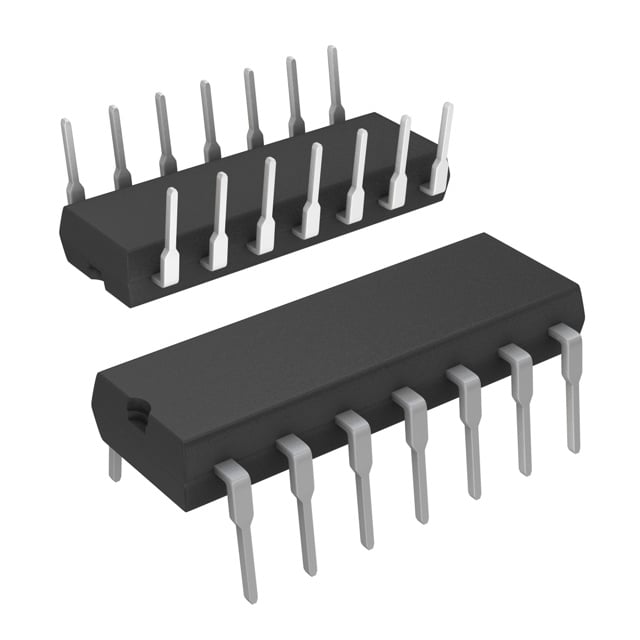

STMicroelectronics L6386E
Images are for reference only
Manufacturer
Manufacturer No
L6386E
Package
14-DIP (0.300", 7.62mm)
Packaging
Tube
Description
IC GATE DRVR HALF-BRIDGE 14DIP
Detailed Description
Half-Bridge Gate Driver IC Inverting 14-DIP
Datasheet
Payment
Delivery
Series
-
Gate Type
IGBT, MOSFET (N-Channel)
Packaging
Tube
Input Type
Inverting
Channel Type
Independent
Manufacturer
STMicroelectronics
Mounting Type
Through Hole
Package / Case
14-DIP (0.300", 7.62mm)
Voltage - Supply
17V (Max)
Number of Drivers
2
Base Product Number
L6386
DigiKey Programmable
Not Verified
Driven Configuration
Half-Bridge
Operating Temperature
-40°C ~ 150°C (TJ)
Rise / Fall Time (Typ)
50ns, 30ns
Supplier Device Package
14-DIP
Logic Voltage - VIL, VIH
1.5V, 3.6V
High Side Voltage - Max (Bootstrap)
600 V
Current - Peak Output (Source, Sink)
400mA, 650mA
| Attribute | Value |
|---|---|
| Series | - |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Packaging | Tube |
| Input Type | Inverting |
| Channel Type | Independent |
| Manufacturer | STMicroelectronics |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Voltage - Supply | 17V (Max) |
| Number of Drivers | 2 |
| Base Product Number | L6386 |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rise / Fall Time (Typ) | 50ns, 30ns |
| Supplier Device Package | 14-DIP |
| Logic Voltage - VIL, VIH | 1.5V, 3.6V |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Current - Peak Output (Source, Sink) | 400mA, 650mA |
