Step1: Product
STMicroelectronics ESDZV5HS-1BF4

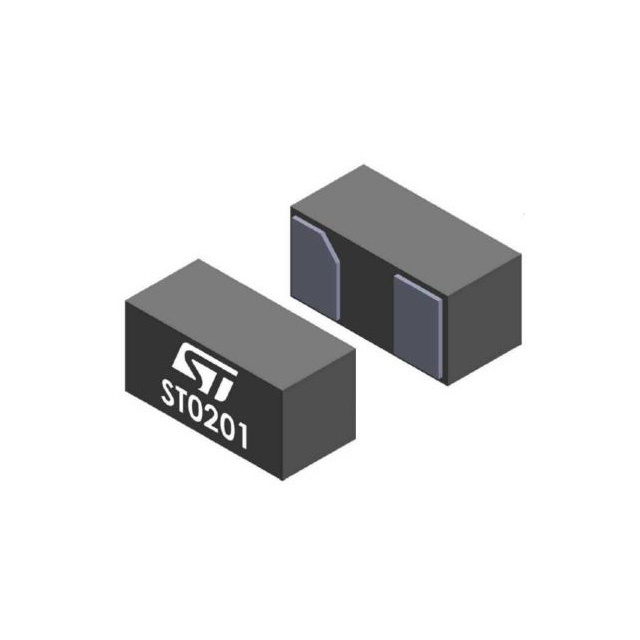

Images are for reference only
Manufacturer
Manufacturer No
ESDZV5HS-1BF4
Quantity
14,820
Availability
In Stock
Package
0201 (0603 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5.5VWM 0201
Detailed Description
Clamp Ipp Tvs Diode Surface Mount 0201
Datasheet
Payment
Delivery
Mfr
STMicroelectronics
Type
Zener
Series
ESDZ
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
-
Base Product Number
ESDZV5
Operating Temperature
150°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
7pF @ 1GHz
Supplier Device Package
0201
Voltage - Breakdown (Min)
7V
Voltage - Clamping (Max) @ Ipp
-
Voltage - Reverse Standoff (Typ)
5.5V
Current - Peak Pulse (10/1000µs)
-
| Attribute | Value |
|---|---|
| Mfr | STMicroelectronics |
| Type | Zener |
| Series | ESDZ |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | - |
| Base Product Number | ESDZV5 |
| Operating Temperature | 150°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 7pF @ 1GHz |
| Supplier Device Package | 0201 |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | - |
| Voltage - Reverse Standoff (Typ) | 5.5V |
| Current - Peak Pulse (10/1000µs) | - |
