Step1: Product

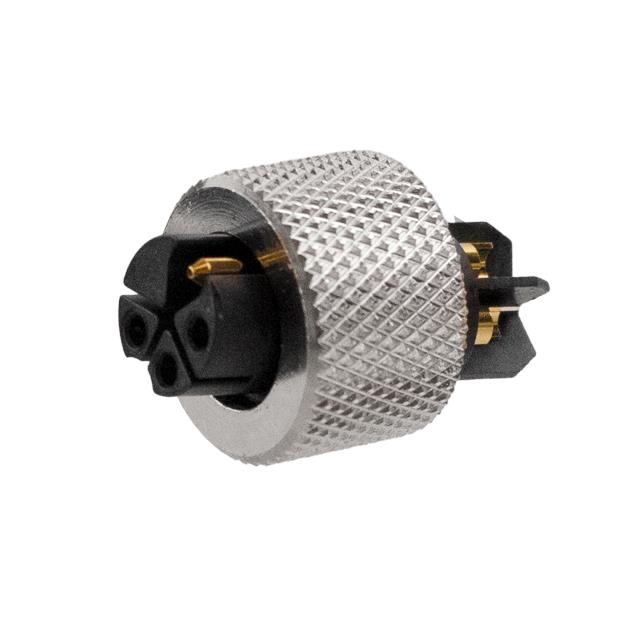

Stewart Connector SS-12500-002
Images are for reference only
Manufacturer
Manufacturer No
SS-12500-002
Availability
In Stock
Packaging
Box
Description
CONN M12-K FEMALE
Detailed Description
4 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
Stewart Connector
Color
Silver
Series
-
Features
-
Packaging
Box
Shielding
Shielded
Orientation
K
Termination
Solder Cup
Applications
Communication Systems, Industrial
Shell Finish
Nickel
Cable Opening
-
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Brass
Voltage Rating
630V
Insert Material
Thermoplastic
Shell Size, MIL
-
Contact Material
Copper Alloy
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP68 - Dust Tight, Waterproof
Number of Positions
4
Shell Size - Insert
M12-4
Current Rating (Amps)
12A
Operating Temperature
-
Contact Finish - Mating
Gold
Backshell Material, Plating
-
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | Stewart Connector |
| Color | Silver |
| Series | - |
| Features | - |
| Packaging | Box |
| Shielding | Shielded |
| Orientation | K |
| Termination | Solder Cup |
| Applications | Communication Systems, Industrial |
| Shell Finish | Nickel |
| Cable Opening | - |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Voltage Rating | 630V |
| Insert Material | Thermoplastic |
| Shell Size, MIL | - |
| Contact Material | Copper Alloy |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Number of Positions | 4 |
| Shell Size - Insert | M12-4 |
| Current Rating (Amps) | 12A |
| Operating Temperature | - |
| Contact Finish - Mating | Gold |
| Backshell Material, Plating | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | - |
