Step1: Product

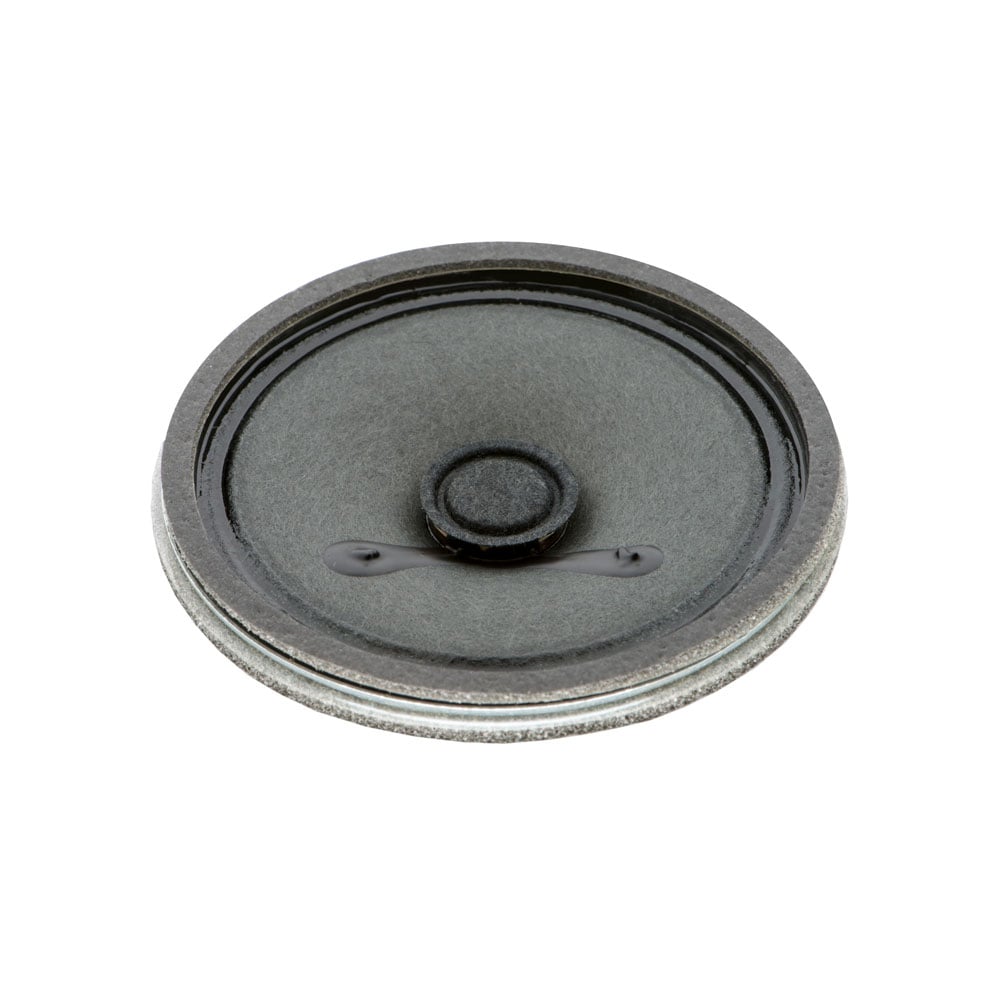

Stetron U0066032NP004AR
Images are for reference only
Manufacturer
Manufacturer No
U0066032NP004AR
Packaging
Tray
Description
Loudspeaker, 66 mm ; 32 Ohms, 0.
Detailed Description
32 Ohms General Purpose Speaker 500 mW 320 Hz ~ 5 kHz Top Round
Datasheet
Payment
Delivery
Type
General Purpose
Shape
Round
Series
-
Ratings
-
Impedance
32 Ohms
Packaging
Tray
Technology
Magnetic
Power - Max
1 W
Termination
Wire Leads with Connector
Manufacturer
Stetron
Port Location
Top
Power - Rated
500 mW
Frequency Range
320 Hz ~ 5 kHz
Material - Cone
Paper
Efficiency - dBA
94.00
Size / Dimension
2.598" Dia (66.00mm)
Distortion Rating
5% Max @ 800Hz, 250mW
Efficiency - Type
Sensitivity
Material - Magnet
Nd-Fe-B
Ingress Protection
-
Efficiency - Testing
250mW/500mm
Height - Seated (Max)
0.673" (17.10mm)
Operating Temperature
-25°C ~ 70°C
Frequency - Self Resonant
320Hz
| Attribute | Value |
|---|---|
| Type | General Purpose |
| Shape | Round |
| Series | - |
| Ratings | - |
| Impedance | 32 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Power - Max | 1 W |
| Termination | Wire Leads with Connector |
| Manufacturer | Stetron |
| Port Location | Top |
| Power - Rated | 500 mW |
| Frequency Range | 320 Hz ~ 5 kHz |
| Material - Cone | Paper |
| Efficiency - dBA | 94.00 |
| Size / Dimension | 2.598" Dia (66.00mm) |
| Distortion Rating | 5% Max @ 800Hz, 250mW |
| Efficiency - Type | Sensitivity |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Efficiency - Testing | 250mW/500mm |
| Height - Seated (Max) | 0.673" (17.10mm) |
| Operating Temperature | -25°C ~ 70°C |
| Frequency - Self Resonant | 320Hz |
