Step1: Product

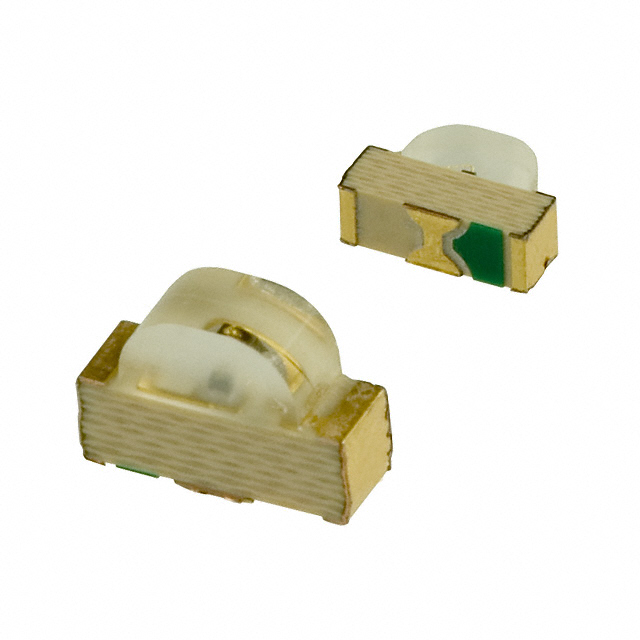

Stanley Electric Co AY1101F-TR
Images are for reference only
Manufacturer
Manufacturer No
AY1101F-TR
Package
2-SMD, No Lead
Packaging
Tape & Reel (TR)
Description
LED YELLOW CLEAR SMD R/A
Detailed Description
Yellow 590nm LED Indication - Discrete 2.1V 2-SMD, No Lead
Datasheet
Payment
Delivery
Mfr
Stanley Electric Co
Color
Yellow
Series
1101F
Features
-
Lens Size
2.00mm x 1.00mm
Packaging
Tape & Reel (TR)
Lens Color
Colorless
Lens Style
Rectangle with Domed Top
Height (Max)
1.00mm
Configuration
Standard
Mounting Type
Surface Mount, Right Angle
Viewing Angle
143°, 136°
Current - Test
20mA
Package / Case
2-SMD, No Lead
Size / Dimension
3.00mm L x 2.00mm W
Lens Transparency
Clear
Wavelength - Peak
580nm
Millicandela Rating
3mcd
Wavelength - Dominant
590nm
Supplier Device Package
-
Voltage - Forward (Vf) (Typ)
2.1V
| Attribute | Value |
|---|---|
| Mfr | Stanley Electric Co |
| Color | Yellow |
| Series | 1101F |
| Features | - |
| Lens Size | 2.00mm x 1.00mm |
| Packaging | Tape & Reel (TR) |
| Lens Color | Colorless |
| Lens Style | Rectangle with Domed Top |
| Height (Max) | 1.00mm |
| Configuration | Standard |
| Mounting Type | Surface Mount, Right Angle |
| Viewing Angle | 143°, 136° |
| Current - Test | 20mA |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Lens Transparency | Clear |
| Wavelength - Peak | 580nm |
| Millicandela Rating | 3mcd |
| Wavelength - Dominant | 590nm |
| Supplier Device Package | - |
| Voltage - Forward (Vf) (Typ) | 2.1V |
