Step1: Product

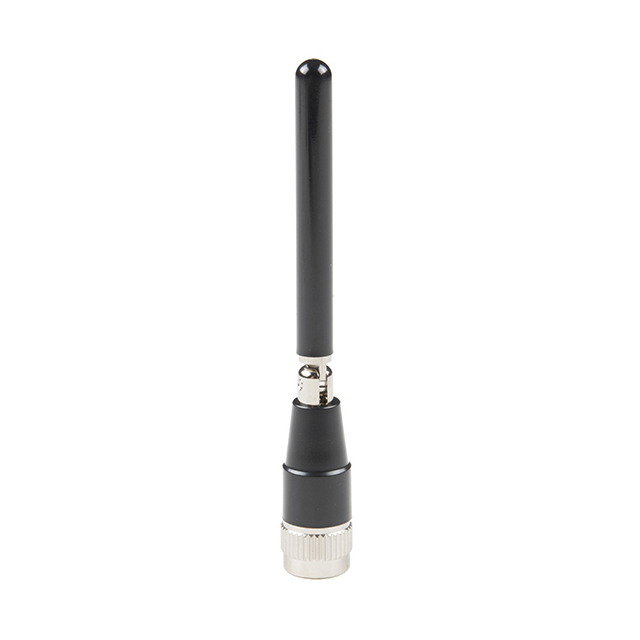

SparkFun Electronics 18153
Images are for reference only
Manufacturer
Manufacturer No
18153
Packaging
Bulk
Description
MULTI-BAND 4G/3G/2G MONOPOLE ANT
Detailed Description
RF ANTENNA 2G, 3G, 4G, 5G, Cellular, GSM, LTE, NB-IOT Whip, Tilt/Swivel SMA Male Connector Mount
Datasheet
Payment
Delivery
Gain
1.4dBi, 2.9dBi, 3.5dBi, 3.7dBi, 2.9dBi, 3.4dBi, 2.6dBi, 5.9dBi
VSWR
-
Series
-
Features
-
Packaging
Bulk
Power - Max
10 W
Return Loss
-
Termination
SMA Male
Antenna Type
Whip, Tilt/Swivel
Applications
2G, 3G, 4G, 5G, Cellular, GSM, LTE, NB-IOT
Height (Max)
2.835" (72.00mm)
Manufacturer
SparkFun Electronics
Mounting Type
Connector Mount
Frequency Group
Wide Band
Frequency Range
704MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz
Number of Bands
8
Ingress Protection
-
RF Family/Standard
Cellular, Navigation
Frequency (Center/Band)
764MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.55GHz
| Attribute | Value |
|---|---|
| Gain | 1.4dBi, 2.9dBi, 3.5dBi, 3.7dBi, 2.9dBi, 3.4dBi, 2.6dBi, 5.9dBi |
| VSWR | - |
| Series | - |
| Features | - |
| Packaging | Bulk |
| Power - Max | 10 W |
| Return Loss | - |
| Termination | SMA Male |
| Antenna Type | Whip, Tilt/Swivel |
| Applications | 2G, 3G, 4G, 5G, Cellular, GSM, LTE, NB-IOT |
| Height (Max) | 2.835" (72.00mm) |
| Manufacturer | SparkFun Electronics |
| Mounting Type | Connector Mount |
| Frequency Group | Wide Band |
| Frequency Range | 704MHz ~ 824MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz |
| Number of Bands | 8 |
| Ingress Protection | - |
| RF Family/Standard | Cellular, Navigation |
| Frequency (Center/Band) | 764MHz, 892MHz, 1.795GHz, 1.92GHz, 1.94GHz, 2.35GHz, 2.59GHz, 3.55GHz |
