Step1: Product

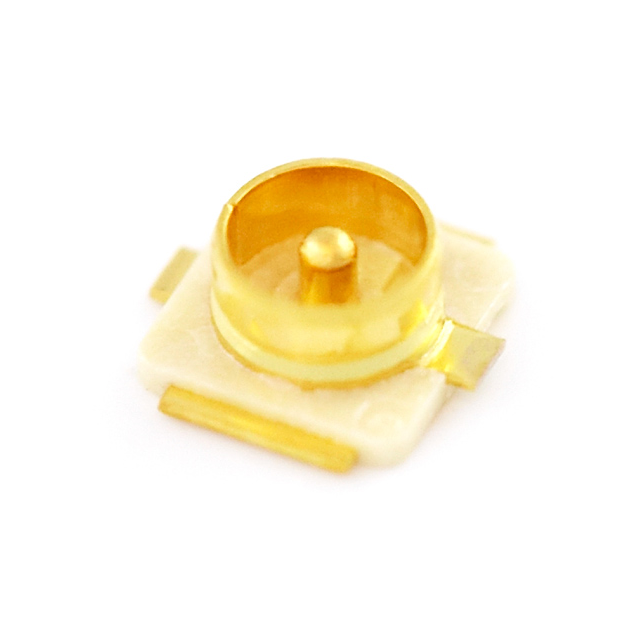

SparkFun Electronics 09144
Images are for reference only
Manufacturer
Manufacturer No
09144
Packaging
Bulk
Description
U.FL SMD CONNECTOR
Detailed Description
UHF, Mini Connector Receptacle, Male Pin 50 Ohms Surface Mount Solder
Datasheet
Payment
Delivery
Mfr
SparkFun Electronics
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
-
Body Material
Copper Alloy
Housing Color
Gold
Mating Cycles
-
Mounting Type
Surface Mount
Connector Type
Receptacle, Male Pin
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
60 V
Connector Style
UHF, Mini
Frequency - Max
6 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
-
Contact Termination
Solder
Dielectric Material
-
Operating Temperature
-40°C ~ 85°C
Center Contact Plating
Gold
Center Contact Material
Copper Alloy
| Attribute | Value |
|---|---|
| Mfr | SparkFun Electronics |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | - |
| Body Material | Copper Alloy |
| Housing Color | Gold |
| Mating Cycles | - |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 60 V |
| Connector Style | UHF, Mini |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | - |
| Contact Termination | Solder |
| Dielectric Material | - |
| Operating Temperature | -40°C ~ 85°C |
| Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy |
