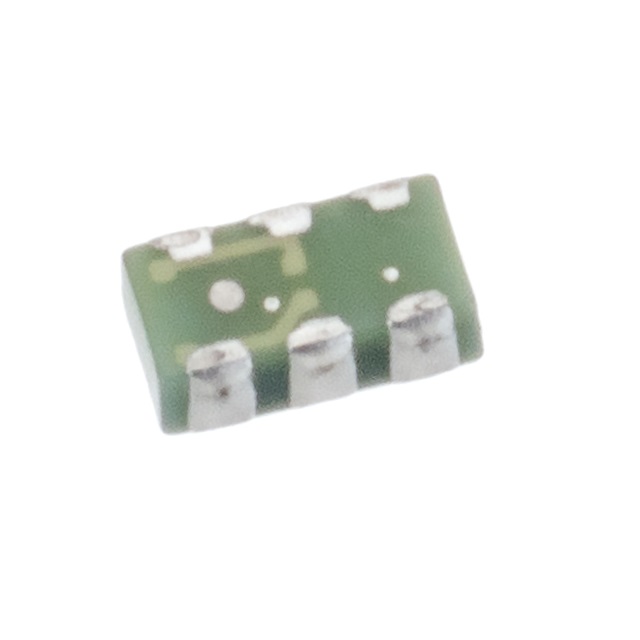

SOSHIN ELECTRIC CO., LTD. HMD9120E
Images are for reference only
Manufacturer
Manufacturer No
HMD9120E
Package
0603 (1608 Metric), 6 PC Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LTCC RF DIPLEXLER 2450MHZ/ 5550M
Detailed Description
RF Diplexer 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz 0603 (1608 Metric), 6 PC Pad
Datasheet
Payment
Delivery
Type
Diplexer
Grade
Automotive
Series
HMD
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
SOSHIN ELECTRIC CO., LTD.
Mounting Type
Surface Mount
Qualification
AEC-Q200
Package / Case
0603 (1608 Metric), 6 PC Pad
Frequency Bands (Low / High)
2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz
Return Loss (Low Band / High Band)
10.0dB / 10.0dB
Low Band Attenuation (min / max dB)
22.00dB / 31.50dB
High Band Attenuation (min / max dB)
2.00dB / 2.50dB
| Attribute | Value |
|---|---|
| Type | Diplexer |
| Grade | Automotive |
| Series | HMD |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | SOSHIN ELECTRIC CO., LTD. |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q200 |
| Package / Case | 0603 (1608 Metric), 6 PC Pad |
| Frequency Bands (Low / High) | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.1GHz, 5.15GHz ~ 5.95GHz |
| Return Loss (Low Band / High Band) | 10.0dB / 10.0dB |
| Low Band Attenuation (min / max dB) | 22.00dB / 31.50dB |
| High Band Attenuation (min / max dB) | 2.00dB / 2.50dB |
