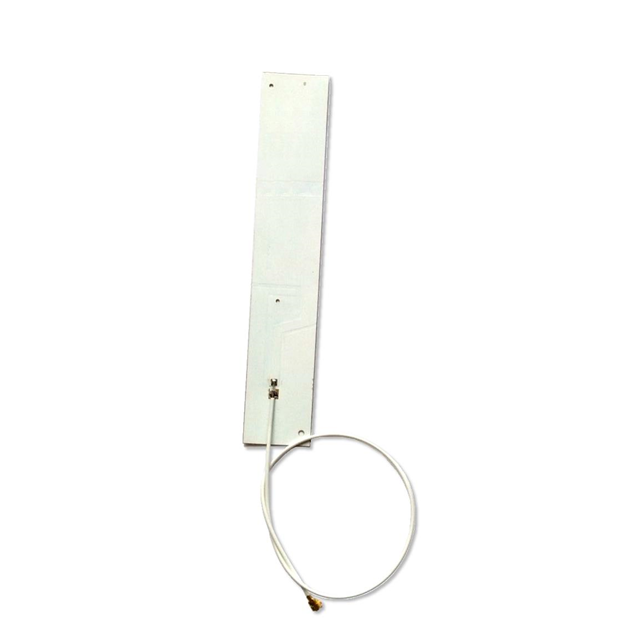

Siretta Ltd ECHO36/0.1M/IPEX/S/S/26
Images are for reference only
Manufacturer
Manufacturer No
ECHO36/0.1M/IPEX/S/S/26
Availability
In Stock
Packaging
Bulk
Description
2G/3G/4G EMBEDDED SMALL FPC ANTE
Detailed Description
RF ANTENNA 2G, 3G, 4G, GSM, LTE, UMTS, Wi-Fi, WLAN Flat Patch U.FL (UMCC), I-PEX MHF1 Surface Mount
Datasheet
Payment
Delivery
Gain
3dBi
VSWR
3
Series
Echo 36
Features
Cable - 100mm
Packaging
Bulk
Return Loss
-
Termination
U.FL (UMCC), I-PEX MHF1
Antenna Type
Flat Patch
Applications
2G, 3G, 4G, GSM, LTE, UMTS, Wi-Fi, WLAN
Height (Max)
0.008" (0.20mm)
Manufacturer
Siretta Ltd
Mounting Type
Surface Mount
Frequency Group
UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz)
Frequency Range
698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz
Number of Bands
2
Ingress Protection
-
RF Family/Standard
Cellular, WiFi
Base Product Number
ECHO36
Frequency (Center/Band)
829MHz, 2.205GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi |
| VSWR | 3 |
| Series | Echo 36 |
| Features | Cable - 100mm |
| Packaging | Bulk |
| Return Loss | - |
| Termination | U.FL (UMCC), I-PEX MHF1 |
| Antenna Type | Flat Patch |
| Applications | 2G, 3G, 4G, GSM, LTE, UMTS, Wi-Fi, WLAN |
| Height (Max) | 0.008" (0.20mm) |
| Manufacturer | Siretta Ltd |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz |
| Number of Bands | 2 |
| Ingress Protection | - |
| RF Family/Standard | Cellular, WiFi |
| Base Product Number | ECHO36 |
| Frequency (Center/Band) | 829MHz, 2.205GHz |
