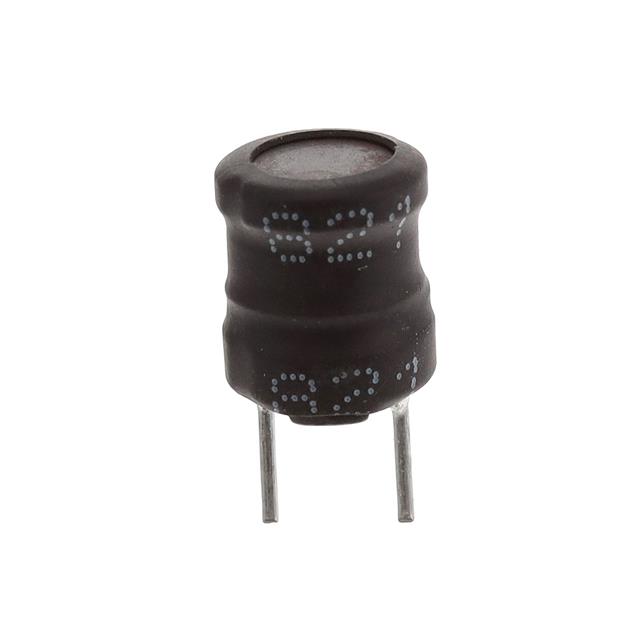

Signal Transformer DRC-V-220K
Images are for reference only
Manufacturer
Manufacturer No
DRC-V-220K
Availability
In Stock
Package
Radial, Vertical Cylinder
Packaging
Tray
Description
FIXED IND 22UH 2.55A 70 MOHM TH
Detailed Description
22 µH Unshielded Drum Core, Wirewound Inductor 2.55 A 70mOhm Max Radial, Vertical Cylinder
Datasheet
Payment
Delivery
Mfr
Signal Transformer
Type
Drum Core, Wirewound
Series
DRC-V
Ratings
-
Features
-
Q @ Freq
40 @ 2.52MHz
Packaging
Tray
Shielding
Unshielded
Tolerance
±10%
Inductance
22 µH
Mounting Type
Through Hole
Package / Case
Radial, Vertical Cylinder
Material - Core
Ferrite
Size / Dimension
0.343" Dia (8.70mm)
Base Product Number
DRC-V
DC Resistance (DCR)
70mOhm Max
Current Rating (Amps)
2.55 A
Height - Seated (Max)
0.492" (12.50mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
Radial
Frequency - Self Resonant
9.2MHz
Current - Saturation (Isat)
2A
Inductance Frequency - Test
2.52 MHz
| Attribute | Value |
|---|---|
| Mfr | Signal Transformer |
| Type | Drum Core, Wirewound |
| Series | DRC-V |
| Ratings | - |
| Features | - |
| Q @ Freq | 40 @ 2.52MHz |
| Packaging | Tray |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Inductance | 22 µH |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Material - Core | Ferrite |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Base Product Number | DRC-V |
| DC Resistance (DCR) | 70mOhm Max |
| Current Rating (Amps) | 2.55 A |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | Radial |
| Frequency - Self Resonant | 9.2MHz |
| Current - Saturation (Isat) | 2A |
| Inductance Frequency - Test | 2.52 MHz |
