Step1: Product

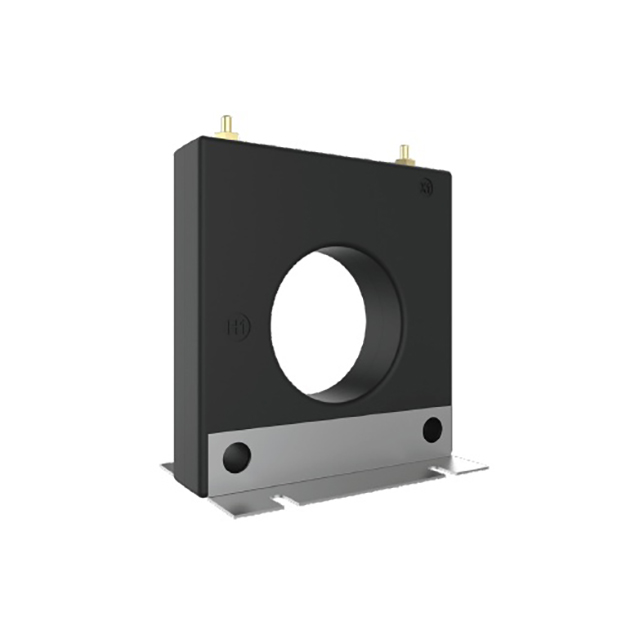

Sifam Tinsley Instrumentation Inc 7SHT-500
Images are for reference only
Manufacturer
Manufacturer No
7SHT-500
Packaging
Retail Package
Description
ANSI CT,50:5,2.5"I.D.,Term Con
Detailed Description
50 A 50:5 Current Sense Transformer 50Hz ~ 400Hz Chassis Mount
Datasheet
Payment
Delivery
Type
Non-Invasive (Solid Core)
Series
Omega 30
Weight
1.5 lbs (680.4 g)
Ratings
-
Packaging
Retail Package
Manufacturer
Sifam Tinsley Instrumentation Inc
Current Ratio
10:1
Mounting Type
Chassis Mount
Frequency Range
50Hz ~ 400Hz
Size / Dimension
4.850" L x 4.560" W (123.19mm x 115.82mm)
Termination Style
Stud
DC Resistance (DCR)
-
Current Rating (Amps)
50 A
Height - Seated (Max)
1.100" (27.94mm)
Turns Ratio - Primary:Secondary
50:5
| Attribute | Value |
|---|---|
| Type | Non-Invasive (Solid Core) |
| Series | Omega 30 |
| Weight | 1.5 lbs (680.4 g) |
| Ratings | - |
| Packaging | Retail Package |
| Manufacturer | Sifam Tinsley Instrumentation Inc |
| Current Ratio | 10:1 |
| Mounting Type | Chassis Mount |
| Frequency Range | 50Hz ~ 400Hz |
| Size / Dimension | 4.850" L x 4.560" W (123.19mm x 115.82mm) |
| Termination Style | Stud |
| DC Resistance (DCR) | - |
| Current Rating (Amps) | 50 A |
| Height - Seated (Max) | 1.100" (27.94mm) |
| Turns Ratio - Primary:Secondary | 50:5 |
