Step1: Product

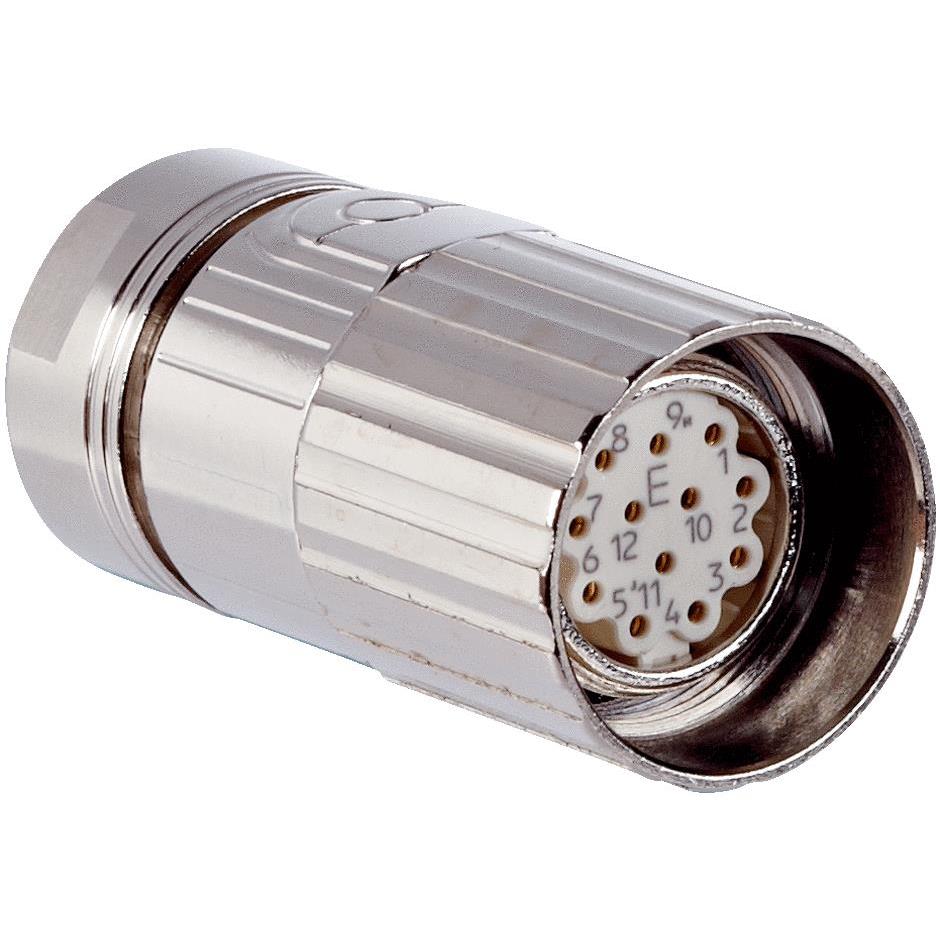

SICK, Inc. 2077057
Images are for reference only
Manufacturer
Manufacturer No
2077057
Packaging
Bulk
Description
CONNECTOR FEM M23 12P ST
Detailed Description
12 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
Payment
Delivery
Mfr
SICK, Inc.
Color
Silver
Series
-
Features
Backshell, Coupling Nut
Packaging
Bulk
Shielding
Shielded
Orientation
Keyed
Termination
Solder Cup
Applications
-
Shell Finish
Nickel
Cable Opening
0.217" ~ 0.413" (5.50mm ~ 10.50mm)
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Female Sockets
Fastening Type
Threaded
Shell Material
Zinc Die Cast
Voltage Rating
300V
Insert Material
-
Shell Size, MIL
-
Contact Material
-
Mounting Feature
-
Primary Material
Metal
Ingress Protection
IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Number of Positions
12
Shell Size - Insert
M23-12
Current Rating (Amps)
8A
Operating Temperature
-40°C ~ 125°C
Contact Finish - Mating
-
Backshell Material, Plating
-
Material Flammability Rating
-
Contact Finish Thickness - Mating
-
| Attribute | Value |
|---|---|
| Mfr | SICK, Inc. |
| Color | Silver |
| Series | - |
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | - |
| Shell Finish | Nickel |
| Cable Opening | 0.217" ~ 0.413" (5.50mm ~ 10.50mm) |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets |
| Fastening Type | Threaded |
| Shell Material | Zinc Die Cast |
| Voltage Rating | 300V |
| Insert Material | - |
| Shell Size, MIL | - |
| Contact Material | - |
| Mounting Feature | - |
| Primary Material | Metal |
| Ingress Protection | IP65/IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Number of Positions | 12 |
| Shell Size - Insert | M23-12 |
| Current Rating (Amps) | 8A |
| Operating Temperature | -40°C ~ 125°C |
| Contact Finish - Mating | - |
| Backshell Material, Plating | - |
| Material Flammability Rating | - |
| Contact Finish Thickness - Mating | - |
