Step1: Product

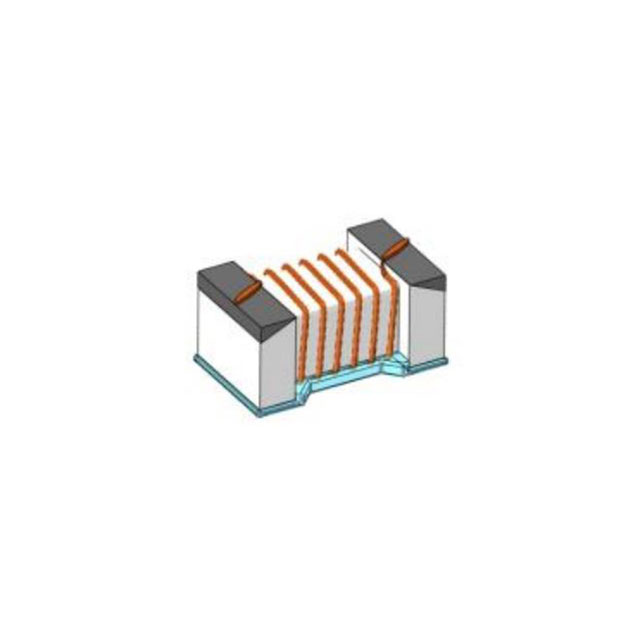

Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C24NHT
Images are for reference only
Manufacturer
Manufacturer No
MWSD1005C24NHT
Package
0402 (1005 Metric)
Packaging
Tape & Reel (TR)
Description
FIXED IND 24NH 330MA 360 MOHM
Detailed Description
24 nH Unshielded Drum Core, Wirewound Inductor 330 mA 360mOhm Max 0402 (1005 Metric)
Datasheet
Payment
Delivery
Mfr
Shenzhen Sunlord Electronics Co., Ltd.
Type
Drum Core, Wirewound
Series
MWSD-C
Ratings
-
Features
-
Q @ Freq
25 @ 250MHz
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Tolerance
±3%
Inductance
24 nH
Mounting Type
Surface Mount
Package / Case
0402 (1005 Metric)
Material - Core
Ceramic
Size / Dimension
0.043" L x 0.024" W (1.10mm x 0.60mm)
Base Product Number
MWSD1005C24
DC Resistance (DCR)
360mOhm Max
Current Rating (Amps)
330 mA
Height - Seated (Max)
0.026" (0.65mm)
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
0402
Frequency - Self Resonant
3.5GHz
Current - Saturation (Isat)
-
Inductance Frequency - Test
250 MHz
| Attribute | Value |
|---|---|
| Mfr | Shenzhen Sunlord Electronics Co., Ltd. |
| Type | Drum Core, Wirewound |
| Series | MWSD-C |
| Ratings | - |
| Features | - |
| Q @ Freq | 25 @ 250MHz |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Tolerance | ±3% |
| Inductance | 24 nH |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Material - Core | Ceramic |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Base Product Number | MWSD1005C24 |
| DC Resistance (DCR) | 360mOhm Max |
| Current Rating (Amps) | 330 mA |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 0402 |
| Frequency - Self Resonant | 3.5GHz |
| Current - Saturation (Isat) | - |
| Inductance Frequency - Test | 250 MHz |
