Step1: Product

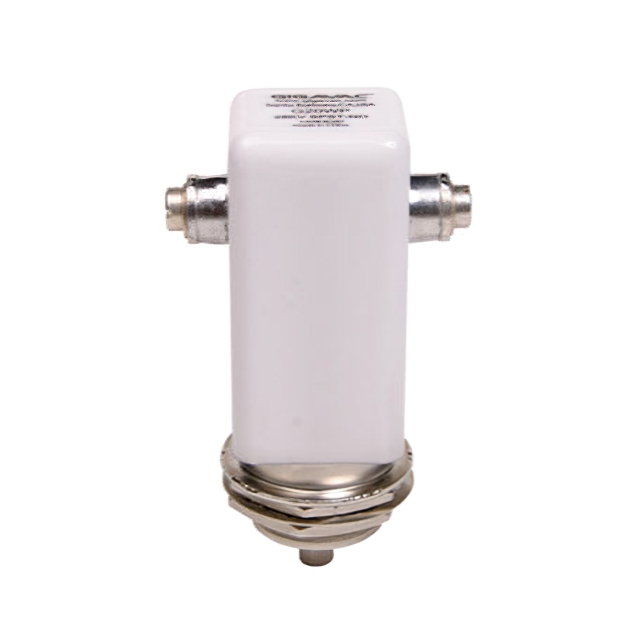

Sensata - Gigavac Industrial G22WP-12VDC
Images are for reference only
Manufacturer
Manufacturer No
G22WP-12VDC
Packaging
Box
Description
25KV SPST-NO HV RELAY
Detailed Description
Contactor SPST-NO (1 Form A) 65 A 12VDC Coil Panel Mount
Datasheet
Payment
Delivery
Series
G22
Features
Sealed - Hermetically
Packaging
Box
Coil Power
6W
Coil Current
500 mA
Coil Voltage
12VDC
Contact Form
SPST-NO (1 Form A)
Manufacturer
Sensata - Gigavac Industrial
Operate Time
18 ms
Release Time
10 ms
Mounting Type
Panel Mount
Coil Resistance
24Ohms
Contact Material
Tungsten (W)
Switching Voltage
25000VAC, 25000VDC - Max
Termination Style
Screw Terminal
Must Operate Voltage
8 VDC
Must Release Voltage
0.5 VDC
Operating Temperature
-55°C ~ 125°C
Contact Rating (Current)
65 A
| Attribute | Value |
|---|---|
| Series | G22 |
| Features | Sealed - Hermetically |
| Packaging | Box |
| Coil Power | 6W |
| Coil Current | 500 mA |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Manufacturer | Sensata - Gigavac Industrial |
| Operate Time | 18 ms |
| Release Time | 10 ms |
| Mounting Type | Panel Mount |
| Coil Resistance | 24Ohms |
| Contact Material | Tungsten (W) |
| Switching Voltage | 25000VAC, 25000VDC - Max |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 0.5 VDC |
| Operating Temperature | -55°C ~ 125°C |
| Contact Rating (Current) | 65 A |
