Step1: Product

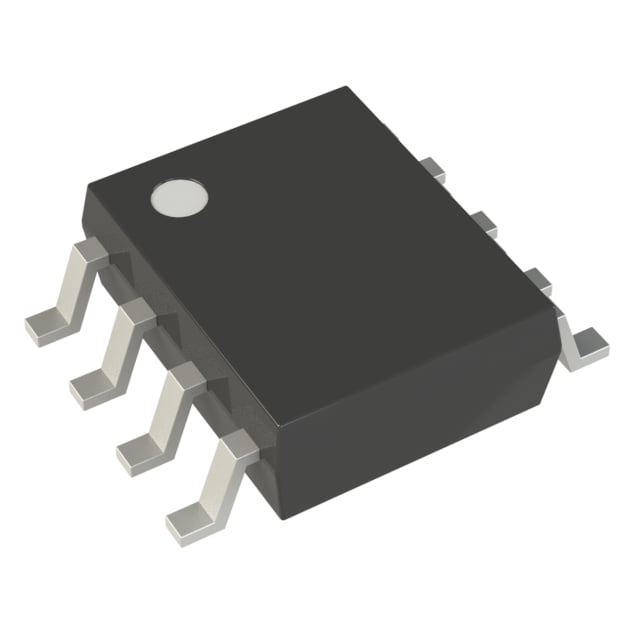

Semtech Corporation SMDA05C.TBT
Images are for reference only
Manufacturer
Manufacturer No
SMDA05C.TBT
Quantity
38
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TVS DIODE 5VWM 11VC 8-SO
Detailed Description
11V Clamp 17A (8/20µs) Ipp Tvs Diode Surface Mount 8-SO
Datasheet
Payment
Delivery
Mfr
Semtech Corporation
Type
Zener
Series
SMDAC
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Power - Peak Pulse
300W
Base Product Number
SMDA05
Operating Temperature
-55°C ~ 125°C (TJ)
Power Line Protection
No
Bidirectional Channels
4
Capacitance @ Frequency
350pF @ 1MHz
Supplier Device Package
8-SO
Voltage - Breakdown (Min)
6V
Voltage - Clamping (Max) @ Ipp
11V
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
17A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | Semtech Corporation |
| Type | Zener |
| Series | SMDAC |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Power - Peak Pulse | 300W |
| Base Product Number | SMDA05 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 4 |
| Capacitance @ Frequency | 350pF @ 1MHz |
| Supplier Device Package | 8-SO |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 11V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 17A (8/20µs) |
