Sanyo 5LN01SS-TL-E

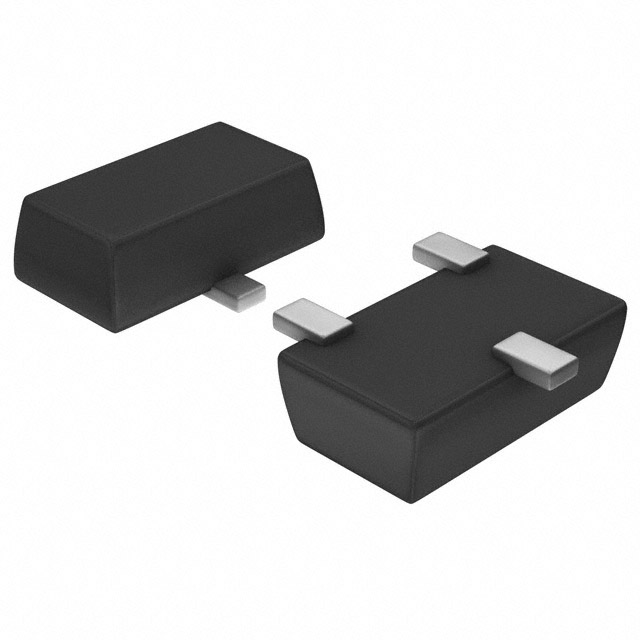

Image is only for reference
| Attribute | Value |
|---|---|
| Mfr | Sanyo |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Bulk |
| Vgs (Max) | ±10V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | SC-81 |
| Vgs(th) (Max) @ Id | - |
| Base Product Number | 5LN01 |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 7.8Ohm @ 50mA, 4V |
| Power Dissipation (Max) | 150mW (Ta) |
| Supplier Device Package | 3-SSFP |
| Gate Charge (Qg) (Max) @ Vgs | 1.57 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 50 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6600 pF @ 10 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
