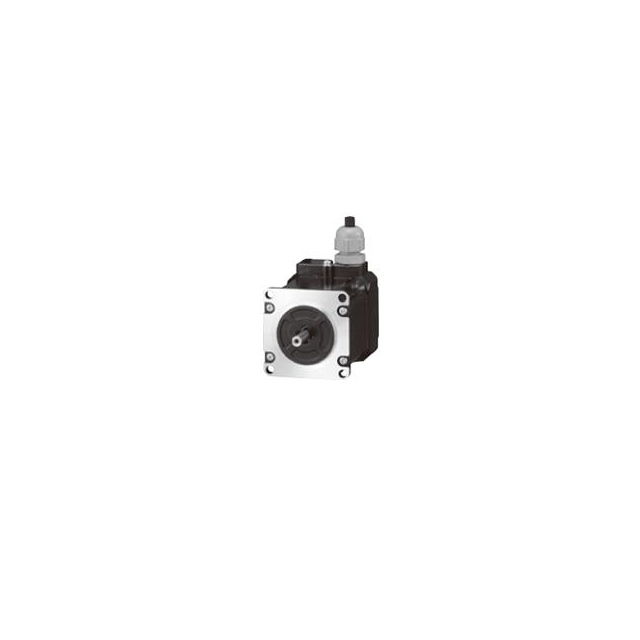

Sanyo Denki SanMotion Products SP2566-5260
Images are for reference only
Manufacturer
Manufacturer No
SP2566-5260
Packaging
Box
Description
STEP, F2, SQ.56, 1.8, IP65, , BI
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 200.0 Step 3 A 100VAC
Datasheet
Payment
Delivery
Mfr
Sanyo Denki SanMotion Products
Type
Hybrid
Series
SP
Weight
-
Accuracy
-
Features
-
Coil Type
Bipolar
Packaging
Box
Step Angle
1.8°
Rotor Inertia
8.66gcm²
Approval Agency
CE, cURus, TUV
Coil Resistance
1 Ohms
Voltage - Rated
100VAC
Diameter - Shaft
0.250" (6.35mm)
Size / Dimension
Square - 2.205" x 2.205" (56.00mm x 56.00mm)
Termination Style
Wire Leads
Base Product Number
SP2566
Steps per Revolution
200.0
Current Rating (Amps)
3 A
Mounting Hole Spacing
1.856" (47.14mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
0.811" (20.60mm)
Torque - Holding (oz-in / mNm)
240.7 / 1700
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki SanMotion Products |
| Type | Hybrid |
| Series | SP |
| Weight | - |
| Accuracy | - |
| Features | - |
| Coil Type | Bipolar |
| Packaging | Box |
| Step Angle | 1.8° |
| Rotor Inertia | 8.66gcm² |
| Approval Agency | CE, cURus, TUV |
| Coil Resistance | 1 Ohms |
| Voltage - Rated | 100VAC |
| Diameter - Shaft | 0.250" (6.35mm) |
| Size / Dimension | Square - 2.205" x 2.205" (56.00mm x 56.00mm) |
| Termination Style | Wire Leads |
| Base Product Number | SP2566 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 3 A |
| Mounting Hole Spacing | 1.856" (47.14mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 0.811" (20.60mm) |
| Torque - Holding (oz-in / mNm) | 240.7 / 1700 |
