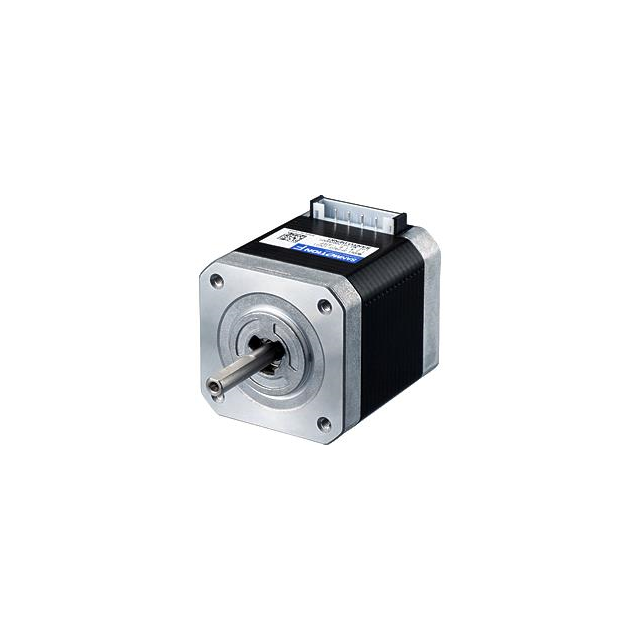

Sanyo Denki SanMotion Products SF2423-10B41
Images are for reference only
Manufacturer
Manufacturer No
SF2423-10B41
Packaging
Box
Description
STEP, F2, SQ.42, 1.8, , , BIPOLA
Detailed Description
Bipolar Stepper Motor Hybrid Frame Size 200.0 Step 1 A 24VDC
Datasheet
Payment
Delivery
Mfr
Sanyo Denki SanMotion Products
Type
Hybrid
Series
SF
Weight
-
Accuracy
-
Features
-
Coil Type
Bipolar
Packaging
Box
Step Angle
1.8°
Rotor Inertia
1.52gcm²
Approval Agency
CE, cURus, TUV
Coil Resistance
5.3 Ohms
Voltage - Rated
24VDC
Diameter - Shaft
0.197" (5.00mm)
Size / Dimension
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Termination Style
Connector
Base Product Number
SF2423
Steps per Revolution
200.0
Current Rating (Amps)
1 A
Mounting Hole Spacing
1.220" (31.00mm)
Operating Temperature
-10°C ~ 50°C
Length - Shaft and Bearing
0.945" (24.00mm)
Torque - Holding (oz-in / mNm)
79.3 / 560
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki SanMotion Products |
| Type | Hybrid |
| Series | SF |
| Weight | - |
| Accuracy | - |
| Features | - |
| Coil Type | Bipolar |
| Packaging | Box |
| Step Angle | 1.8° |
| Rotor Inertia | 1.52gcm² |
| Approval Agency | CE, cURus, TUV |
| Coil Resistance | 5.3 Ohms |
| Voltage - Rated | 24VDC |
| Diameter - Shaft | 0.197" (5.00mm) |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) |
| Termination Style | Connector |
| Base Product Number | SF2423 |
| Steps per Revolution | 200.0 |
| Current Rating (Amps) | 1 A |
| Mounting Hole Spacing | 1.220" (31.00mm) |
| Operating Temperature | -10°C ~ 50°C |
| Length - Shaft and Bearing | 0.945" (24.00mm) |
| Torque - Holding (oz-in / mNm) | 79.3 / 560 |
