Step1: Product

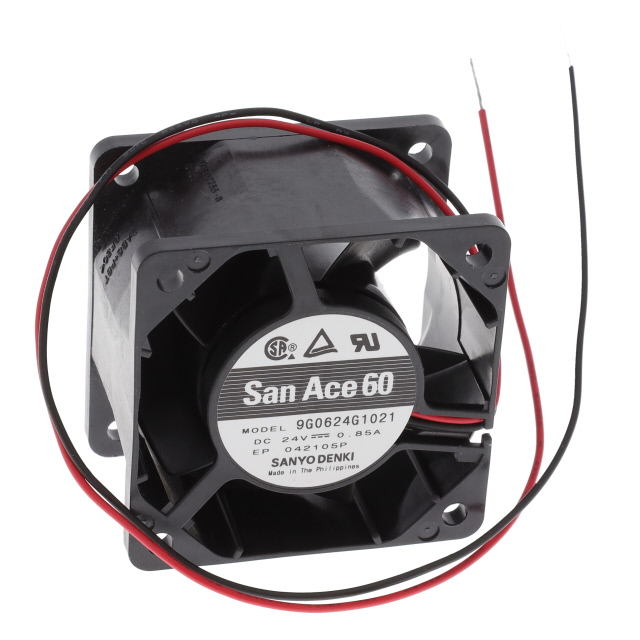

Sanyo Denki America Inc. 9G0624G1021
Images are for reference only
Manufacturer
Manufacturer No
9G0624G1021
Packaging
Box
Description
FAN AXIAL 60X38MM 24VDC WIRE
Detailed Description
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 65.0 CFM (1.82m³/min) 2 Wire Leads
Datasheet
Payment
Delivery
Mfr
Sanyo Denki America Inc.
RPM
11800 RPM
Noise
58.0dB(A)
Width
38.00mm
Series
San Ace 60
Weight
0.243 lb (110.22 g)
Air Flow
65.0 CFM (1.82m³/min)
Fan Type
Tubeaxial
Features
Locked Rotor Protection
Packaging
Box
Termination
2 Wire Leads
Bearing Type
Ball
Power (Watts)
20.4 W
Voltage Range
14 ~ 27.6VDC
Approval Agency
CSA, TUV, UL
Static Pressure
1.747 in H2O (435.2 Pa)
Voltage - Rated
24VDC
Lifetime @ Temp.
40000 Hrs @ 60°C
Material - Blade
Plastic
Material - Frame
Plastic
Size / Dimension
Square - 60mm L x 60mm H
Ingress Protection
-
Base Product Number
9G0624
Current Rating (Amps)
0.850A
Operating Temperature
-4 ~ 158°F (-20 ~ 70°C)
| Attribute | Value |
|---|---|
| Mfr | Sanyo Denki America Inc. |
| RPM | 11800 RPM |
| Noise | 58.0dB(A) |
| Width | 38.00mm |
| Series | San Ace 60 |
| Weight | 0.243 lb (110.22 g) |
| Air Flow | 65.0 CFM (1.82m³/min) |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Packaging | Box |
| Termination | 2 Wire Leads |
| Bearing Type | Ball |
| Power (Watts) | 20.4 W |
| Voltage Range | 14 ~ 27.6VDC |
| Approval Agency | CSA, TUV, UL |
| Static Pressure | 1.747 in H2O (435.2 Pa) |
| Voltage - Rated | 24VDC |
| Lifetime @ Temp. | 40000 Hrs @ 60°C |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Size / Dimension | Square - 60mm L x 60mm H |
| Ingress Protection | - |
| Base Product Number | 9G0624 |
| Current Rating (Amps) | 0.850A |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
