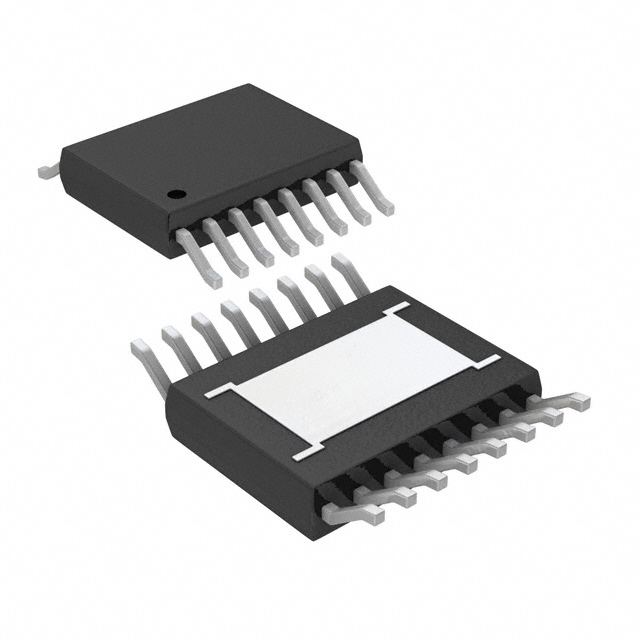

Sanken Electric USA Inc. SPF3006
Images are for reference only
Manufacturer
Manufacturer No
SPF3006
Package
16-SOIC (0.295", 7.50mm Width) Exposed Pad
Packaging
Bulk
Description
IC REG LINEAR 5/5V 16-HSOP
Detailed Description
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA, 500mA 16-HSOP
Datasheet
Payment
Delivery
Mfr
Sanken Electric USA Inc.
PSRR
54dB (100Hz ~ 120Hz)
Series
-
Packaging
Bulk
Output Type
Fixed
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width) Exposed Pad
Control Features
Enable, Reset, Watchdog
Current - Output
200mA, 500mA
Protection Features
Over Current, Over Temperature
Number of Regulators
1
Output Configuration
Positive
Operating Temperature
-40°C ~ 150°C (TJ)
Voltage - Input (Max)
35V
Voltage Dropout (Max)
0.5V @ 400mA
Voltage - Output (Max)
-
Supplier Device Package
16-HSOP
Current - Quiescent (Iq)
10 mA
Voltage - Output (Min/Fixed)
5V, 5V
| Attribute | Value |
|---|---|
| Mfr | Sanken Electric USA Inc. |
| PSRR | 54dB (100Hz ~ 120Hz) |
| Series | - |
| Packaging | Bulk |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad |
| Control Features | Enable, Reset, Watchdog |
| Current - Output | 200mA, 500mA |
| Protection Features | Over Current, Over Temperature |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Input (Max) | 35V |
| Voltage Dropout (Max) | 0.5V @ 400mA |
| Voltage - Output (Max) | - |
| Supplier Device Package | 16-HSOP |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Output (Min/Fixed) | 5V, 5V |
