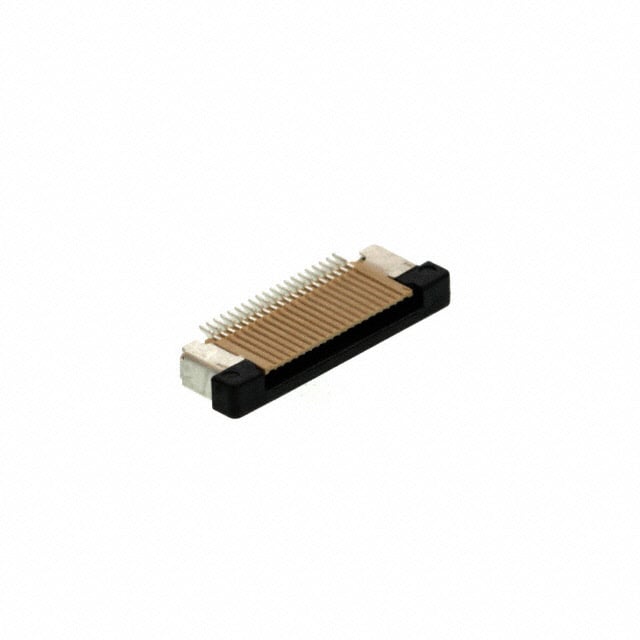

Samtec Inc. ZF5S-20-01-T-WT-TR
Images are for reference only
Manufacturer
Manufacturer No
ZF5S-20-01-T-WT-TR
Quantity
45
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN FFC BOTTOM 20POS 0.5MM R/A
Detailed Description
20 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Payment
Delivery
Pitch
0.020" (0.50mm)
Series
ZF5S
Features
Solder Retention, Zero Insertion Force (ZIF)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Termination
Solder
Manufacturer
Samtec Inc.
Housing Color
Natural
Mating Cycles
-
Mounting Type
Surface Mount, Right Angle
Actuator Color
Black
Cable End Type
Straight
Contact Finish
Tin
Flat Flex Type
FFC
Voltage Rating
-
Locking Feature
Slide Lock
Contact Material
Phosphor Bronze
Housing Material
Liquid Crystal Polymer (LCP)
Actuator Material
Liquid Crystal Polymer (LCP)
FFC, FCB Thickness
0.30mm
Height Above Board
0.083" (2.10mm)
Base Product Number
ZF5S-20
Number of Positions
20
Current Rating (Amps)
1.8A per Contact
Operating Temperature
-55°C ~ 105°C
Connector/Contact Type
Contacts, Bottom
Contact Finish Thickness
-
Material Flammability Rating
-
| Attribute | Value |
|---|---|
| Pitch | 0.020" (0.50mm) |
| Series | ZF5S |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Termination | Solder |
| Manufacturer | Samtec Inc. |
| Housing Color | Natural |
| Mating Cycles | - |
| Mounting Type | Surface Mount, Right Angle |
| Actuator Color | Black |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC |
| Voltage Rating | - |
| Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.083" (2.10mm) |
| Base Product Number | ZF5S-20 |
| Number of Positions | 20 |
| Current Rating (Amps) | 1.8A per Contact |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
