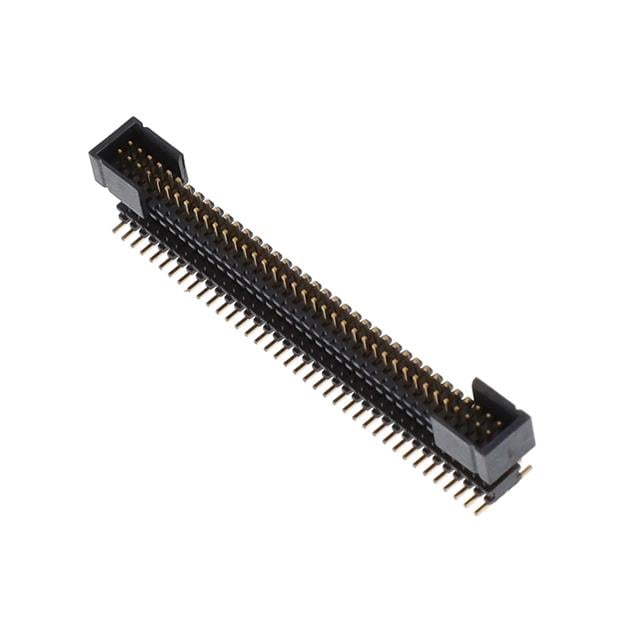

Samtec Inc. MW-38-03-G-D-218-075-ES-A-P
Images are for reference only
Manufacturer
Manufacturer No
MW-38-03-G-D-218-075-ES-A-P
Packaging
Tube
Description
CONN HDR 76POS 0.039 STACK SMD
Detailed Description
76 Position Header Spacer Connector 0.039" (1.00mm) Gold Surface Mount
Datasheet
Payment
Delivery
Color
Black, Natural
Pitch
0.039" (1.00mm)
Series
Flex Stack, MW
Packaging
Tube
Row Spacing
0.039" (1.00mm)
Termination
Solder
Manufacturer
Samtec Inc.
Length - Tail
-
Mounting Type
Surface Mount
Number of Rows
2
Base Product Number
MW-38-03
Number of Positions
76
Length - Overall Pin
0.293" (7.442mm)
Length - Stack Height
0.218" (5.537mm)
Length - Post (Mating)
0.075" (1.905mm)
Contact Finish - Post (Mating)
Gold
Contact Finish Thickness - Post (Mating)
10.0µin (0.25µm)
| Attribute | Value |
|---|---|
| Color | Black, Natural |
| Pitch | 0.039" (1.00mm) |
| Series | Flex Stack, MW |
| Packaging | Tube |
| Row Spacing | 0.039" (1.00mm) |
| Termination | Solder |
| Manufacturer | Samtec Inc. |
| Length - Tail | - |
| Mounting Type | Surface Mount |
| Number of Rows | 2 |
| Base Product Number | MW-38-03 |
| Number of Positions | 76 |
| Length - Overall Pin | 0.293" (7.442mm) |
| Length - Stack Height | 0.218" (5.537mm) |
| Length - Post (Mating) | 0.075" (1.905mm) |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 10.0µin (0.25µm) |
