Step1: Product

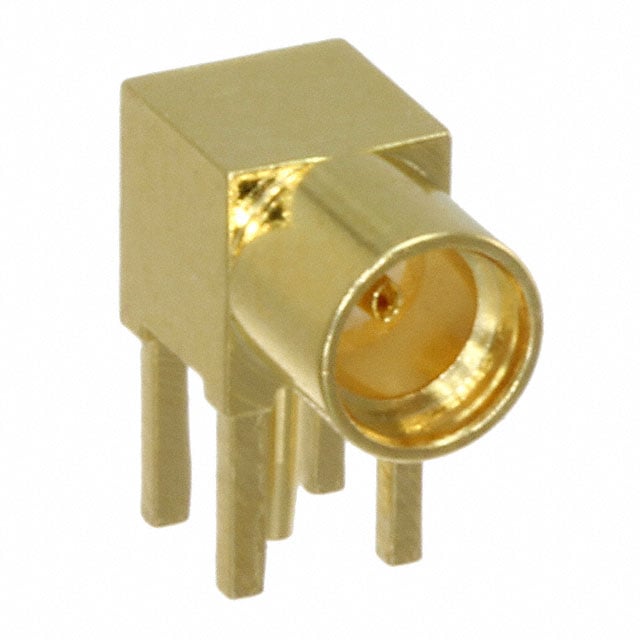

Samtec Inc. MMCX-J-P-H-RA-TH1
Images are for reference only
Manufacturer
Manufacturer No
MMCX-J-P-H-RA-TH1
Quantity
200
Availability
In Stock
Packaging
Tray
Description
CONN MMCX JACK R/A 50 OHM PCB
Detailed Description
MMCX Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
Datasheet
Payment
Delivery
Mfr
Samtec Inc.
Series
MMCX
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Tray
Body Finish
Gold
Cable Group
-
Body Material
Brass
Housing Color
Gold
Mating Cycles
-
Mounting Type
Through Hole, Right Angle
Connector Type
Jack, Female Socket
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
500 V
Connector Style
MMCX
Frequency - Max
6 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
MMCX-J
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 125°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Samtec Inc. |
| Series | MMCX |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Tray |
| Body Finish | Gold |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack, Female Socket |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | MMCX |
| Frequency - Max | 6 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | MMCX-J |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 125°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
