Step1: Product

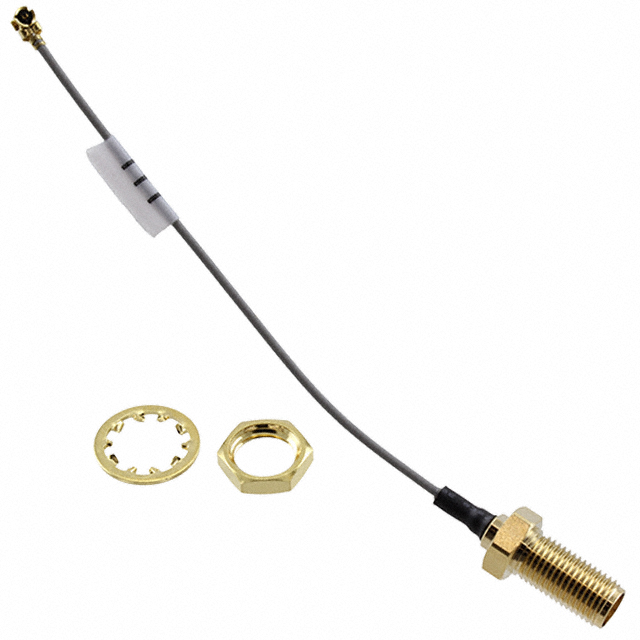

Samtec Inc. MH113-MH1RP-01BJ1-0100
Images are for reference only
Manufacturer
Manufacturer No
MH113-MH1RP-01BJ1-0100
Availability
In Stock
Packaging
Bag
Description
COAX CBL U.FL, MHF1 TO SMA 3.9"
Detailed Description
Cable Assembly Coaxial U.FL (UMCC), I-PEX MHF1 to SMA 1.13mm OD Coaxial Cable 3.937" (100.00mm)
Datasheet
Payment
Delivery
Color
Gray
Style
U.FL (UMCC), I-PEX MHF1 to SMA
Length
3.937" (100.00mm)
Series
MH113
Features
Shielded
Packaging
Bag
Cable Type
1.13mm OD Coaxial Cable
Manufacturer
Samtec Inc.
1st Connector
SMA Jack
2nd Connector
U.FL (UMCC), I-PEX MHF1 Plug, Right Angle
Cable Impedance
50 Ohms
Frequency - Max
6 GHz
Overall Impedance
50 Ohms
1st Contact Gender
Female
2nd Contact Gender
Female
Ingress Protection
-
Base Product Number
MH113-MH1RP
Operating Temperature
-40°C ~ 90°C
1st Connector Mounting Type
Panel Mount
2nd Connector Mounting Type
Free Hanging (In-Line)
1st Connector Mounting Feature
Bulkhead - Front Side Nut
2nd Connector Mounting Feature
-
| Attribute | Value |
|---|---|
| Color | Gray |
| Style | U.FL (UMCC), I-PEX MHF1 to SMA |
| Length | 3.937" (100.00mm) |
| Series | MH113 |
| Features | Shielded |
| Packaging | Bag |
| Cable Type | 1.13mm OD Coaxial Cable |
| Manufacturer | Samtec Inc. |
| 1st Connector | SMA Jack |
| 2nd Connector | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle |
| Cable Impedance | 50 Ohms |
| Frequency - Max | 6 GHz |
| Overall Impedance | 50 Ohms |
| 1st Contact Gender | Female |
| 2nd Contact Gender | Female |
| Ingress Protection | - |
| Base Product Number | MH113-MH1RP |
| Operating Temperature | -40°C ~ 90°C |
| 1st Connector Mounting Type | Panel Mount |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Feature | - |
