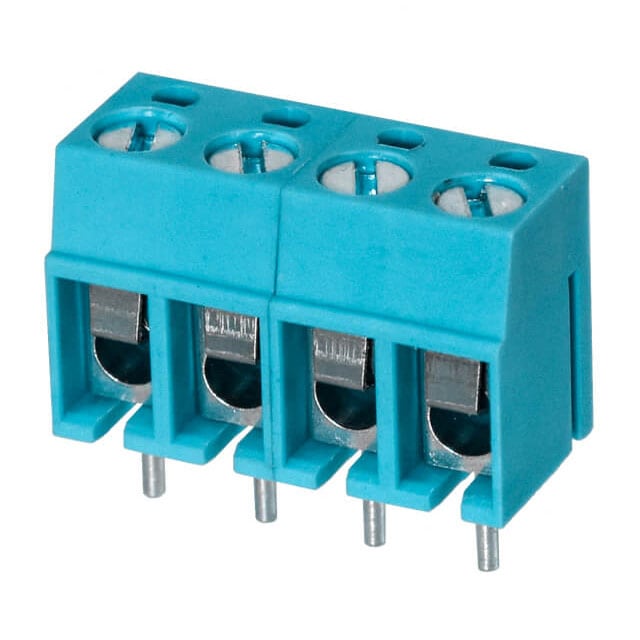

Same Sky (Formerly CUI Devices) TB001-500-04BE
Images are for reference only
Manufacturer
Manufacturer No
TB001-500-04BE
Quantity
2
Availability
In Stock
Packaging
Bag
Description
TERMINAL BLOCK, SCREW TYPE, 5.00
Detailed Description
4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Datasheet
Payment
Delivery
Color
Blue
Pitch
0.197" (5.00mm)
Series
TB001-500
Current
15 A
Voltage
300 V
Features
Interlocking (Side)
Packaging
Bag
Wire Gauge
12-22 AWG
Manufacturer
Same Sky (Formerly CUI Devices)
Screw Thread
M3
Mounting Type
Through Hole
Torque - Screw
0.5 Nm (4.4 Lb-In)
Housing Material
Polybutylene Terephthalate (PBT)
Number of Levels
1
Wire Termination
Screw - Leaf Spring, Wire Guard
Mating Orientation
Horizontal with Board
Base Product Number
TB001
Positions Per Level
4
Operating Temperature
-40°C ~ 105°C
Clamp Material - Plating
Steel, Stainless
Screw Material - Plating
Steel - Zinc Plated
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Blue |
| Pitch | 0.197" (5.00mm) |
| Series | TB001-500 |
| Current | 15 A |
| Voltage | 300 V |
| Features | Interlocking (Side) |
| Packaging | Bag |
| Wire Gauge | 12-22 AWG |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Levels | 1 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Mating Orientation | Horizontal with Board |
| Base Product Number | TB001 |
| Positions Per Level | 4 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | Steel - Zinc Plated |
| Contact Material - Plating | Copper Alloy - Tin Plated |
