Step1: Product

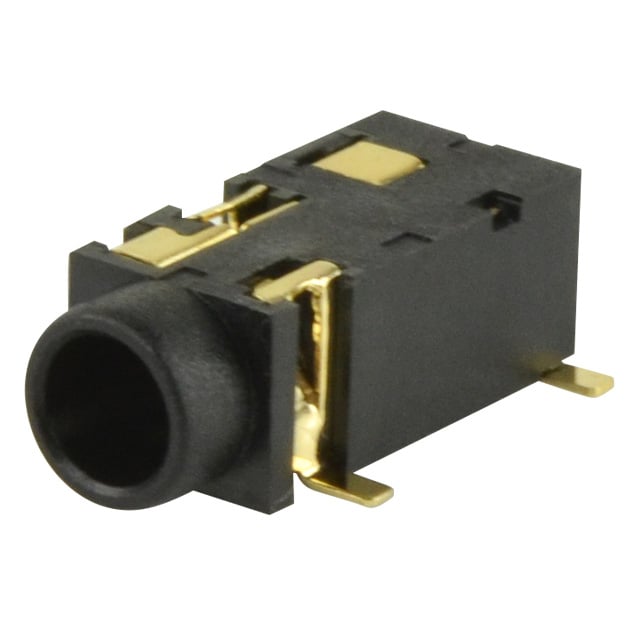

Same Sky (Formerly CUI Devices) SJ2-35043C-SMT-TR
Images are for reference only
Manufacturer
Manufacturer No
SJ2-35043C-SMT-TR
Packaging
Cut Tape (CT)
Description
AUDIO JACK, 3.5 MM, RT, 4 CONDUC
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Datasheet
Payment
Delivery
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ2
Features
Board Guide
Includes
-
Packaging
Cut Tape (CT)
Shielding
Unshielded
Body Color
Black
Termination
Solder
Thread Size
-
Signal Lines
Stereo (4 Conductor, TRRS)
Body Material
-
Cable Opening
-
Mounting Type
Surface Mount, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Panel Hole Size
-
Voltage - Rated
12VDC
Contact Material
Copper Alloy
Housing Material
Polyamide (PA10T), Nylon 10T
Insulation Color
-
Internal Switch(s)
Single Switch
Base Product Number
SJ2-35
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Copper Alloy
Number of Positions/Contacts
4 Conductors, 5 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ2 |
| Features | Board Guide |
| Includes | - |
| Packaging | Cut Tape (CT) |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Thread Size | - |
| Signal Lines | Stereo (4 Conductor, TRRS) |
| Body Material | - |
| Cable Opening | - |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Panel Hole Size | - |
| Voltage - Rated | 12VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Insulation Color | - |
| Internal Switch(s) | Single Switch |
| Base Product Number | SJ2-35 |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Copper Alloy |
| Number of Positions/Contacts | 4 Conductors, 5 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
