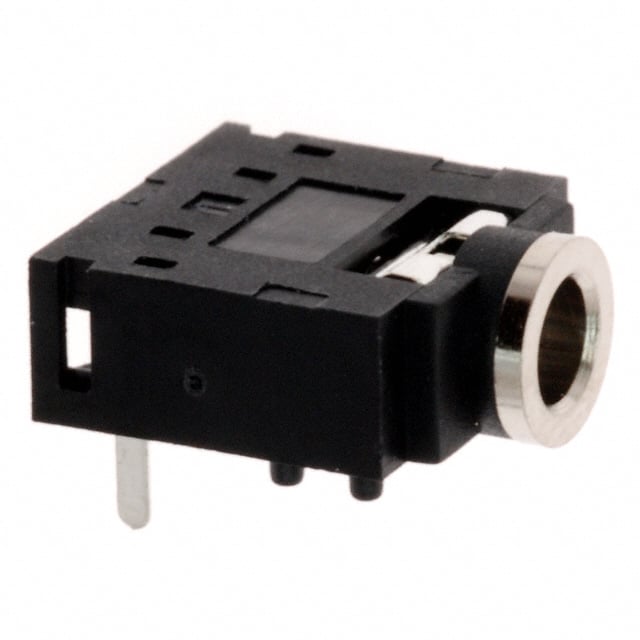

Same Sky (Formerly CUI Devices) SJ1-3523N
Images are for reference only
Manufacturer
Manufacturer No
SJ1-3523N
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN JACK STEREO 3.5MM R/A
Detailed Description
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Datasheet
Payment
Delivery
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
SJ1
Features
-
Includes
-
Packaging
Tray
Shielding
Unshielded
Body Color
Silver, Black
Termination
Solder
Thread Size
-
Signal Lines
Stereo (3 Conductor, TRS)
Body Material
Brass
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Phone Jack
Actual Diameter
0.142" (3.60mm)
Panel Hole Size
-
Voltage - Rated
12VDC
Contact Material
-
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
-
Internal Switch(s)
Does Not Contain Switch
Base Product Number
SJ1-35
Mating Length/Depth
0.551" (14.00mm)
Current Rating (Amps)
1 A
Operating Temperature
-
Contact Material - Plating
-
Number of Positions/Contacts
3 Conductors, 3 Contacts
Industry Recognized Mating Diameter
3.50mm (0.141", 1/8", Mini Plug) - Headphone
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | SJ1 |
| Features | - |
| Includes | - |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Termination | Solder |
| Thread Size | - |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Body Material | Brass |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phone Jack |
| Actual Diameter | 0.142" (3.60mm) |
| Panel Hole Size | - |
| Voltage - Rated | 12VDC |
| Contact Material | - |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | - |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | SJ1-35 |
| Mating Length/Depth | 0.551" (14.00mm) |
| Current Rating (Amps) | 1 A |
| Operating Temperature | - |
| Contact Material - Plating | - |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
