Step1: Product

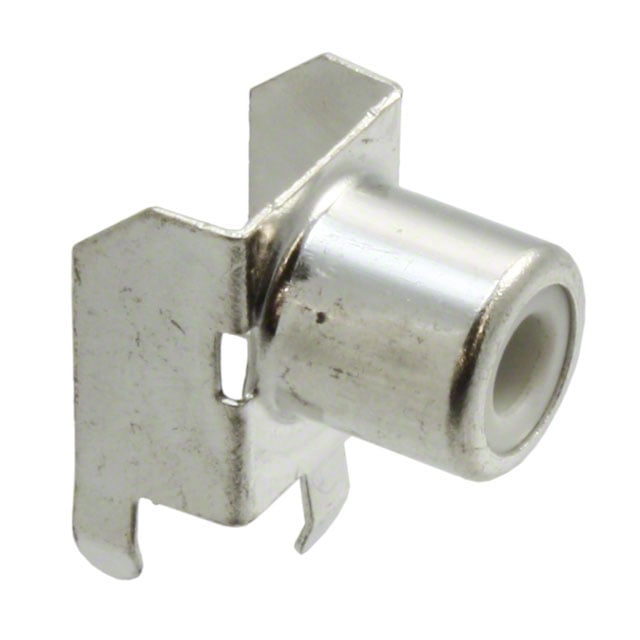

Same Sky (Formerly CUI Devices) RCJ-013
Images are for reference only
Manufacturer
Manufacturer No
RCJ-013
Quantity
29
Availability
In Stock
Packaging
Tray
Description
CONN RCA JACK MONO 3.2MM R/A
Detailed Description
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder
Datasheet
Payment
Delivery
Mfr
Same Sky (Formerly CUI Devices)
Gender
Female
Series
RCJ
Features
Board Lock
Includes
-
Packaging
Tray
Shielding
Unshielded
Body Color
Silver
Termination
Solder
Thread Size
-
Signal Lines
Mono
Body Material
Steel
Cable Opening
-
Mounting Type
Through Hole, Right Angle
Connector Type
Phono (RCA) Jack
Actual Diameter
0.142" (3.60mm ID), 0.327" (8.30mm OD)
Panel Hole Size
-
Voltage - Rated
-
Contact Material
Brass
Housing Material
-
Insulation Color
White
Internal Switch(s)
Does Not Contain Switch
Mating Length/Depth
-
Operating Temperature
-20°C ~ 85°C
Contact Material - Plating
Tin
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
3.20mm ID, 9.00mm OD (RCA)
| Attribute | Value |
|---|---|
| Mfr | Same Sky (Formerly CUI Devices) |
| Gender | Female |
| Series | RCJ |
| Features | Board Lock |
| Includes | - |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Silver |
| Termination | Solder |
| Thread Size | - |
| Signal Lines | Mono |
| Body Material | Steel |
| Cable Opening | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Phono (RCA) Jack |
| Actual Diameter | 0.142" (3.60mm ID), 0.327" (8.30mm OD) |
| Panel Hole Size | - |
| Voltage - Rated | - |
| Contact Material | Brass |
| Housing Material | - |
| Insulation Color | White |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | - |
| Operating Temperature | -20°C ~ 85°C |
| Contact Material - Plating | Tin |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 3.20mm ID, 9.00mm OD (RCA) |
