Step1: Product

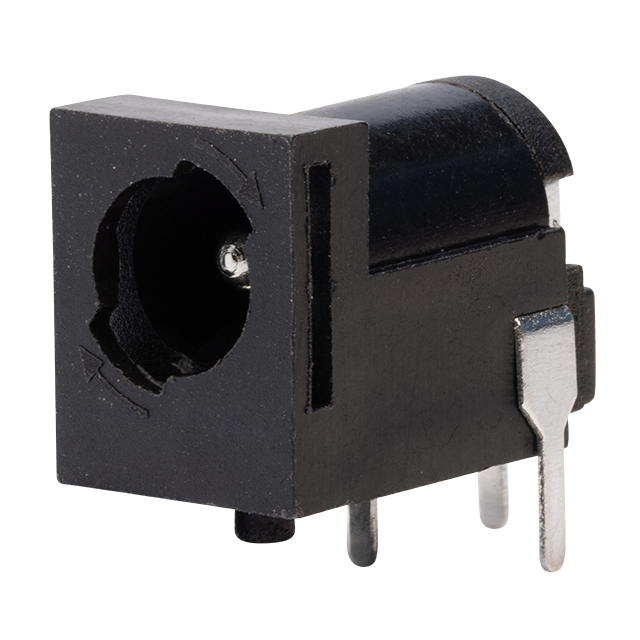

Same Sky (Formerly CUI Devices) PJ-059AH
Images are for reference only
Manufacturer
Manufacturer No
PJ-059AH
Availability
In Stock
Packaging
Tray
Description
CONN PWR JACK 2X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Through Hole, Right Angle
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
Board Guide
Includes
-
Packaging
Tray
Shielding
Unshielded
Body Color
Black
Termination
Solder
Thread Size
-
Manufacturer
Same Sky (Formerly CUI Devices)
Body Material
-
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.224" (5.70mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
-
Mounting Feature
-
Ingress Protection
-
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
PJ-059
Mating Length/Depth
0.386" (9.80mm)
Current Rating (Amps)
5 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.10mm ID (0.083"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | Board Guide |
| Includes | - |
| Packaging | Tray |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Thread Size | - |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Body Material | - |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.224" (5.70mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | - |
| Mounting Feature | - |
| Ingress Protection | - |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | PJ-059 |
| Mating Length/Depth | 0.386" (9.80mm) |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
