Step1: Product

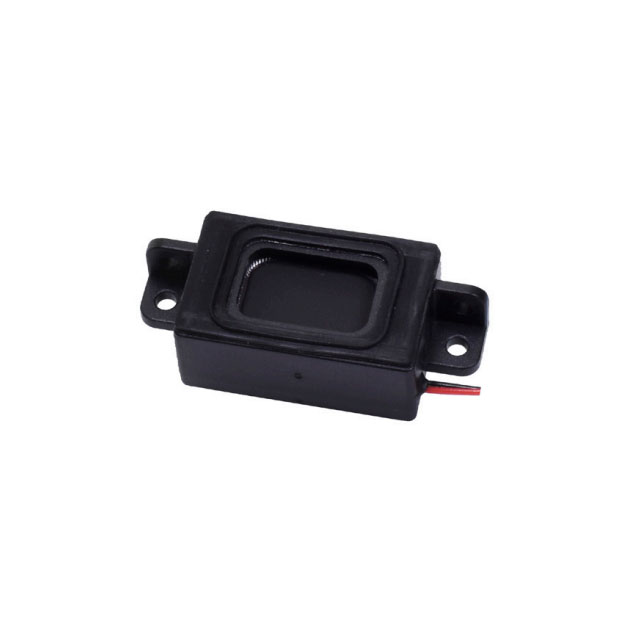

Same Sky (Formerly CUI Devices) CES-361811-18PM-67
Images are for reference only
Manufacturer
Manufacturer No
CES-361811-18PM-67
Availability
In Stock
Packaging
Tray
Description
SPEAKER 8OHM 1W TOP PORT 89DB
Detailed Description
8 Ohms General Purpose, Enclosure Included Speaker 1 W 720 Hz ~ 20 kHz Top Rectangular
Datasheet
Payment
Delivery
Type
General Purpose, Enclosure Included
Shape
Rectangular
Series
CES
Ratings
-
Impedance
8 Ohms
Packaging
Tray
Technology
Magnetic
Power - Max
1.2 W
Termination
Wire Leads with Connector
Manufacturer
Same Sky (Formerly CUI Devices)
Port Location
Top
Power - Rated
1 W
Frequency Range
720 Hz ~ 20 kHz
Material - Cone
Polyetheretherketone (PEEK)
Efficiency - dBA
89.00
Size / Dimension
1.213" L x 0.622" W (30.80mm x 15.80mm)
Distortion Rating
10% Max @ 1kHz, 1W, 100mm
Efficiency - Type
Sound Pressure Level (SPL)
Material - Magnet
Nd-Fe-B
Ingress Protection
IP67 - Dust Tight, Waterproof
Base Product Number
CES-361811
Efficiency - Testing
1W/100mm
Height - Seated (Max)
0.429" (10.90mm)
Operating Temperature
-30°C ~ 70°C
Frequency - Self Resonant
900Hz
| Attribute | Value |
|---|---|
| Type | General Purpose, Enclosure Included |
| Shape | Rectangular |
| Series | CES |
| Ratings | - |
| Impedance | 8 Ohms |
| Packaging | Tray |
| Technology | Magnetic |
| Power - Max | 1.2 W |
| Termination | Wire Leads with Connector |
| Manufacturer | Same Sky (Formerly CUI Devices) |
| Port Location | Top |
| Power - Rated | 1 W |
| Frequency Range | 720 Hz ~ 20 kHz |
| Material - Cone | Polyetheretherketone (PEEK) |
| Efficiency - dBA | 89.00 |
| Size / Dimension | 1.213" L x 0.622" W (30.80mm x 15.80mm) |
| Distortion Rating | 10% Max @ 1kHz, 1W, 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | CES-361811 |
| Efficiency - Testing | 1W/100mm |
| Height - Seated (Max) | 0.429" (10.90mm) |
| Operating Temperature | -30°C ~ 70°C |
| Frequency - Self Resonant | 900Hz |
