Step1: Product

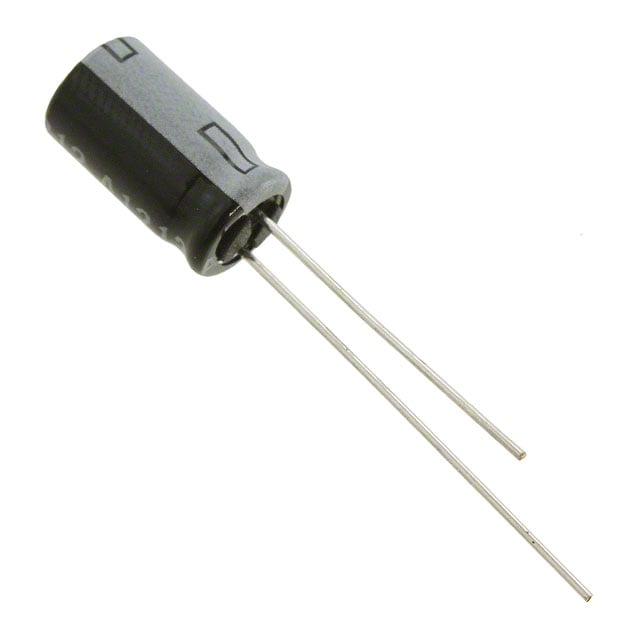

Rubycon 35ZLH100MEFCTA6.3X11
Images are for reference only
Manufacturer
Manufacturer No
35ZLH100MEFCTA6.3X11
Package
Radial, Can
Packaging
Bulk
Description
CAP ALUM 100UF 20% 35V RADIAL TH
Detailed Description
100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Datasheet
Payment
Delivery
Mfr
Rubycon
Series
ZLH
Ratings
-
Impedance
94 mOhms
Packaging
Bulk
Tolerance
±20%
Capacitance
100 µF
Applications
General Purpose
Lead Spacing
0.098" (2.50mm)
Polarization
Polar
Mounting Type
Through Hole
Package / Case
Radial, Can
Voltage - Rated
35 V
Lifetime @ Temp.
6000 Hrs @ 105°C
Size / Dimension
0.248" Dia (6.30mm)
Height - Seated (Max)
0.492" (12.50mm)
Operating Temperature
-40°C ~ 105°C
Surface Mount Land Size
-
Ripple Current @ Low Frequency
270 mA @ 120 Hz
Ripple Current @ High Frequency
540 mA @ 100 kHz
ESR (Equivalent Series Resistance)
-
| Attribute | Value |
|---|---|
| Mfr | Rubycon |
| Series | ZLH |
| Ratings | - |
| Impedance | 94 mOhms |
| Packaging | Bulk |
| Tolerance | ±20% |
| Capacitance | 100 µF |
| Applications | General Purpose |
| Lead Spacing | 0.098" (2.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Voltage - Rated | 35 V |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Operating Temperature | -40°C ~ 105°C |
| Surface Mount Land Size | - |
| Ripple Current @ Low Frequency | 270 mA @ 120 Hz |
| Ripple Current @ High Frequency | 540 mA @ 100 kHz |
| ESR (Equivalent Series Resistance) | - |
