Richtek USA Inc. RT5090FGQW

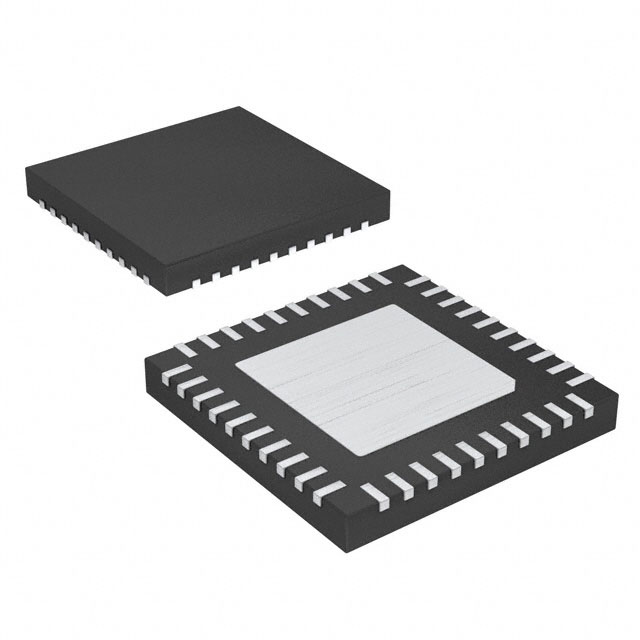

Images are for reference only
Manufacturer
Manufacturer No
RT5090FGQW
Package
40-WFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC PMIC FOR TV SYSTEM WQFN-40
Detailed Description
PMIC - Voltage Regulators - Linear Switching 5 Output Step-Down (Buck) Synchronous (4), Linear (LDO) (1) 450kHz, 1MHz, 1.5MHz 40-WQFN (5x5)
Datasheet
Payment
Delivery
Series
-
Topology
Step-Down (Buck) Synchronous (4), Linear (LDO) (1)
Packaging
Tape & Reel (TR); Cut Tape (CT)
w/Sequencer
Yes
Manufacturer
Richtek USA Inc.
w/LED Driver
No
w/Supervisor
No
Mounting Type
Surface Mount
Package / Case
40-WFQFN Exposed Pad
Voltage - Supply
2.7V ~ 27V
Number of Outputs
5
Base Product Number
RT5090
Frequency - Switching
450kHz, 1MHz, 1.5MHz
Operating Temperature
-40°C ~ 125°C (TJ)
Supplier Device Package
40-WQFN (5x5)
Voltage/Current - Output 1
Controller, Programmable, Programmable, 5V
Voltage/Current - Output 2
Controller, Programmable, Programmable, 0.7V ~ 1.5V, 3.5A
Voltage/Current - Output 3
Controller, Programmable, Programmable, 0.7V ~ 1.5V, 6A
| Attribute | Value |
|---|---|
| Series | - |
| Topology | Step-Down (Buck) Synchronous (4), Linear (LDO) (1) |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| w/Sequencer | Yes |
| Manufacturer | Richtek USA Inc. |
| w/LED Driver | No |
| w/Supervisor | No |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Voltage - Supply | 2.7V ~ 27V |
| Number of Outputs | 5 |
| Base Product Number | RT5090 |
| Frequency - Switching | 450kHz, 1MHz, 1.5MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Supplier Device Package | 40-WQFN (5x5) |
| Voltage/Current - Output 1 | Controller, Programmable, Programmable, 5V |
| Voltage/Current - Output 2 | Controller, Programmable, Programmable, 0.7V ~ 1.5V, 3.5A |
| Voltage/Current - Output 3 | Controller, Programmable, Programmable, 0.7V ~ 1.5V, 6A |
