Step1: Product

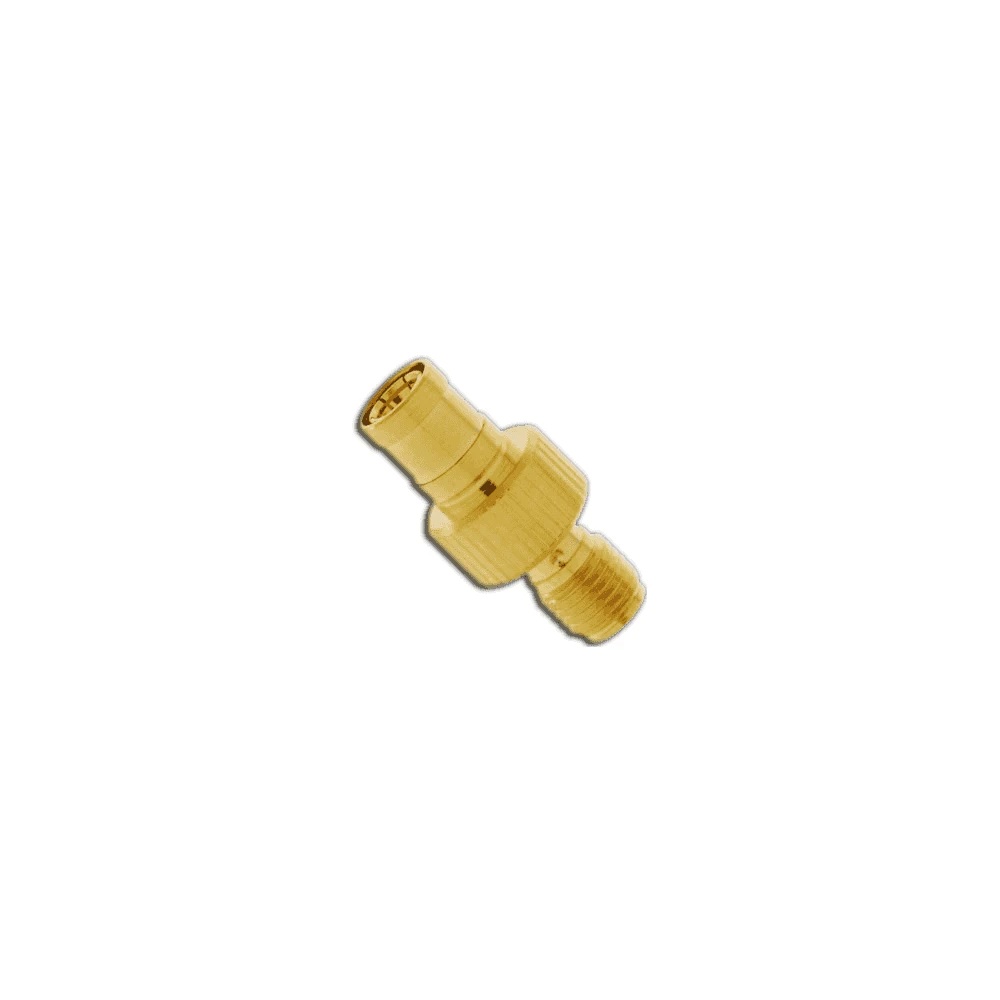

RF Solutions ADP-SMBF-SMAF
Images are for reference only
Manufacturer
Manufacturer No
ADP-SMBF-SMAF
Packaging
Bag
Description
ADAPTER COAXIAL CONNECTOR SMB PL
Detailed Description
Adapter Coaxial Connector SMA Jack, Female Socket To SMB Jack, Female Socket 50 Ohms
Datasheet
Payment
Delivery
Mfr
RF Solutions
Style
Straight
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bag
Body Finish
Gold
Adapter Type
Jack to Jack
Body Material
Brass
Center Gender
Female to Female
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Adapter Series
SMA to SMB
Fastening Type
Snap-On, Threaded
Insertion Loss
-
Conversion Type
Between Series
Frequency - Max
6 GHz
Mounting Feature
-
Ingress Protection
-
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-55°C ~ 155°C
Center Contact Plating
Gold
Center Contact Material
Brass
Convert To (Adapter End)
SMB Jack, Female Socket
Convert From (Adapter End)
SMA Jack, Female Socket
| Attribute | Value |
|---|---|
| Mfr | RF Solutions |
| Style | Straight |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bag |
| Body Finish | Gold |
| Adapter Type | Jack to Jack |
| Body Material | Brass |
| Center Gender | Female to Female |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Adapter Series | SMA to SMB |
| Fastening Type | Snap-On, Threaded |
| Insertion Loss | - |
| Conversion Type | Between Series |
| Frequency - Max | 6 GHz |
| Mounting Feature | - |
| Ingress Protection | - |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -55°C ~ 155°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
| Convert To (Adapter End) | SMB Jack, Female Socket |
| Convert From (Adapter End) | SMA Jack, Female Socket |
