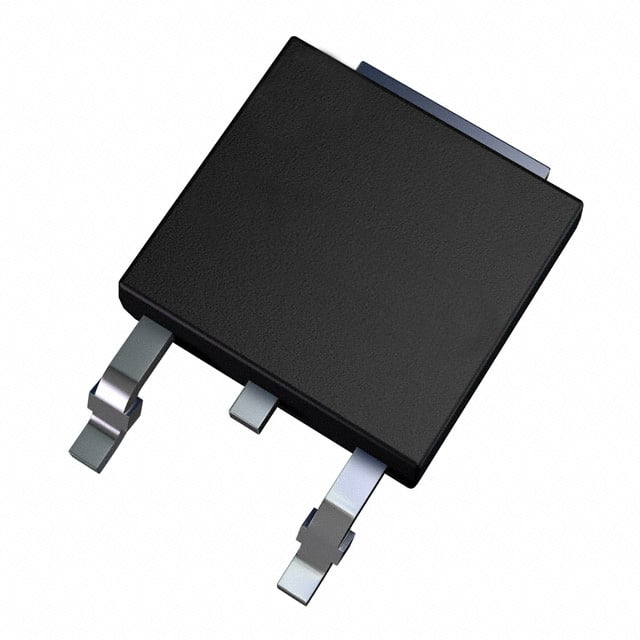

Renesas Electronics Corporation NP32N055SHE-E1-AY
Images are for reference only
Manufacturer
Manufacturer No
NP32N055SHE-E1-AY
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Bulk
Description
MOSFET N-CH 55V 32A TO252
Detailed Description
N-Channel 55 V 32A (Tc) 1.2W (Ta), 66W (Tc) Surface Mount TO-252 (MP-3ZK)
Datasheet
Payment
Delivery
Mfr
Renesas Electronics Corporation
Grade
-
Series
-
FET Type
N-Channel
Packaging
Bulk
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
-
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Vgs(th) (Max) @ Id
4V @ 250µA
Operating Temperature
175°C (TJ)
Rds On (Max) @ Id, Vgs
25mOhm @ 16A, 10V
Power Dissipation (Max)
1.2W (Ta), 66W (Tc)
Supplier Device Package
TO-252 (MP-3ZK)
Gate Charge (Qg) (Max) @ Vgs
32 nC @ 10 V
Drain to Source Voltage (Vdss)
55 V
Input Capacitance (Ciss) (Max) @ Vds
1600 pF @ 25 V
Current - Continuous Drain (Id) @ 25°C
32A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Renesas Electronics Corporation |
| Grade | - |
| Series | - |
| FET Type | N-Channel |
| Packaging | Bulk |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | - |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Operating Temperature | 175°C (TJ) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 16A, 10V |
| Power Dissipation (Max) | 1.2W (Ta), 66W (Tc) |
| Supplier Device Package | TO-252 (MP-3ZK) |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 55 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1600 pF @ 25 V |
| Current - Continuous Drain (Id) @ 25°C | 32A (Tc) |
