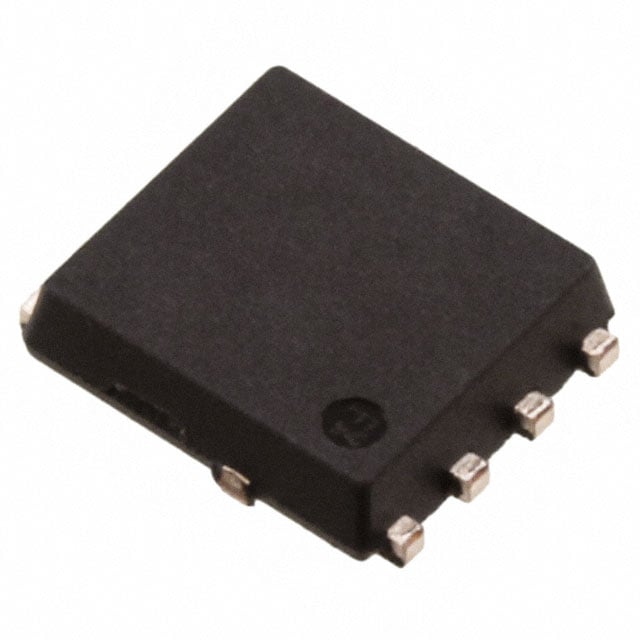

Renesas Electronics Corporation NP16N06YLL-E1-AY
Images are for reference only
Manufacturer
Manufacturer No
NP16N06YLL-E1-AY
Availability
In Stock
Package
8-PowerLDFN
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ABU / MOSFET
Detailed Description
N-Channel 60 V 16A (Tc) 1.25W (Ta), 27.3W (Tc) Surface Mount 8-HSON (5x5.4)
Datasheet
Payment
Delivery
Mfr
Renesas Electronics Corporation
Grade
Automotive
Series
-
FET Type
N-Channel
Packaging
Tape & Reel (TR); Cut Tape (CT)
Vgs (Max)
±20V
Technology
MOSFET (Metal Oxide)
FET Feature
-
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-PowerLDFN
Vgs(th) (Max) @ Id
2V @ 1mA
Operating Temperature
175°C
Rds On (Max) @ Id, Vgs
35mOhm @ 8A, 10V
Power Dissipation (Max)
1.25W (Ta), 27.3W (Tc)
Supplier Device Package
8-HSON (5x5.4)
Gate Charge (Qg) (Max) @ Vgs
18 nC @ 10 V
Drain to Source Voltage (Vdss)
60 V
Input Capacitance (Ciss) (Max) @ Vds
600 pF @ 25 V
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Current - Continuous Drain (Id) @ 25°C
16A (Tc)
| Attribute | Value |
|---|---|
| Mfr | Renesas Electronics Corporation |
| Grade | Automotive |
| Series | - |
| FET Type | N-Channel |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| FET Feature | - |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-PowerLDFN |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Operating Temperature | 175°C |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 8A, 10V |
| Power Dissipation (Max) | 1.25W (Ta), 27.3W (Tc) |
| Supplier Device Package | 8-HSON (5x5.4) |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Drain to Source Voltage (Vdss) | 60 V |
| Input Capacitance (Ciss) (Max) @ Vds | 600 pF @ 25 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) |
