Step1: Product

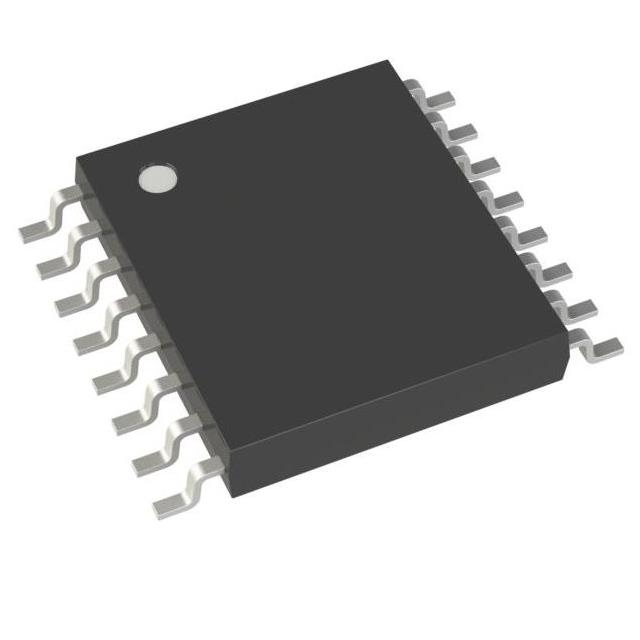

Renesas Electronics Corporation IPS2200BI1W
Images are for reference only
Manufacturer
Manufacturer No
IPS2200BI1W
Quantity
1
Availability
In Stock
Package
16-TSSOP (0.173", 4.40mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
TSSOP / 16 / 5X4MM-0-7"
Detailed Description
Inductive Sensor Linear Position External Magnet, Not Included SMD (SMT) Tab
Datasheet
Payment
Delivery
Output
I2C, SPI
Series
-
Linearity
-
Packaging
Tape & Reel (TR); Cut Tape (CT)
Technology
Inductive
Linear Range
-
Manufacturer
Renesas Electronics Corporation
Actuator Type
External Magnet, Not Included
For Measuring
Linear Position
Mounting Type
Surface Mount
Output Signal
Programmable
Package / Case
16-TSSOP (0.173", 4.40mm Width)
Voltage - Supply
3V ~ 3.6V, 4.5V ~ 5.5V
Termination Style
SMD (SMT) Tab
DigiKey Programmable
-
Resistance Tolerance
-
Operating Temperature
-40°C ~ 125°C
Supplier Device Package
16-TSSOP
Rotation Angle - Electrical, Mechanical
0° ~ 360°
| Attribute | Value |
|---|---|
| Output | I2C, SPI |
| Series | - |
| Linearity | - |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Technology | Inductive |
| Linear Range | - |
| Manufacturer | Renesas Electronics Corporation |
| Actuator Type | External Magnet, Not Included |
| For Measuring | Linear Position |
| Mounting Type | Surface Mount |
| Output Signal | Programmable |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Termination Style | SMD (SMT) Tab |
| DigiKey Programmable | - |
| Resistance Tolerance | - |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-TSSOP |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360° |
