Step1: Product

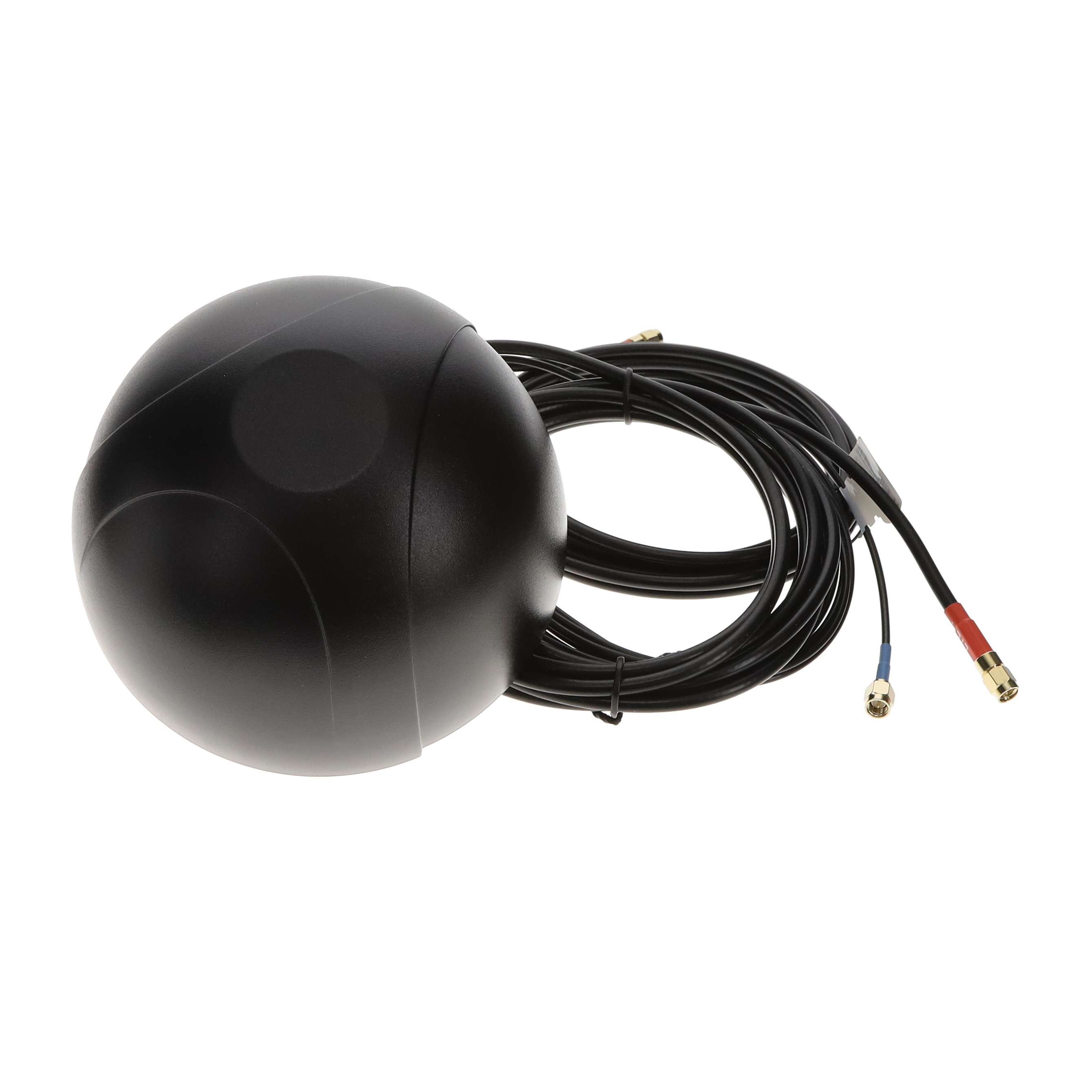

Red Lion Controls ANT-MA710AABI001
Images are for reference only
Manufacturer
Manufacturer No
ANT-MA710AABI001
Availability
In Stock
Packaging
Bulk
Description
RF ANT 742/892MHZ DOME SMA MALE
Detailed Description
RF ANTENNA CDMA, HSPA, GLONASS, GPRS, GPS, GSM, LTE, UMTS Dome SMA Male Panel Mount
Datasheet
Payment
Delivery
Gain
3.2dBi
VSWR
2
Series
Pantheon
Features
-
Packaging
Bulk
Return Loss
-
Termination
SMA Male
Antenna Type
Dome
Applications
CDMA, HSPA, GLONASS, GPRS, GPS, GSM, LTE, UMTS
Height (Max)
3.374" (85.70mm)
Manufacturer
Red Lion Controls
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz
Number of Bands
5
Ingress Protection
IP67
RF Family/Standard
Cellular, Navigation
Base Product Number
ANT-MA710
Frequency (Center/Band)
742MHz, 892MHz, 1.94GHz, 2.4GHz, 3.05GHz
| Attribute | Value |
|---|---|
| Gain | 3.2dBi |
| VSWR | 2 |
| Series | Pantheon |
| Features | - |
| Packaging | Bulk |
| Return Loss | - |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | CDMA, HSPA, GLONASS, GPRS, GPS, GSM, LTE, UMTS |
| Height (Max) | 3.374" (85.70mm) |
| Manufacturer | Red Lion Controls |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 787MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.6GHz ~ 3.5GHz |
| Number of Bands | 5 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular, Navigation |
| Base Product Number | ANT-MA710 |
| Frequency (Center/Band) | 742MHz, 892MHz, 1.94GHz, 2.4GHz, 3.05GHz |
