Step1: Product

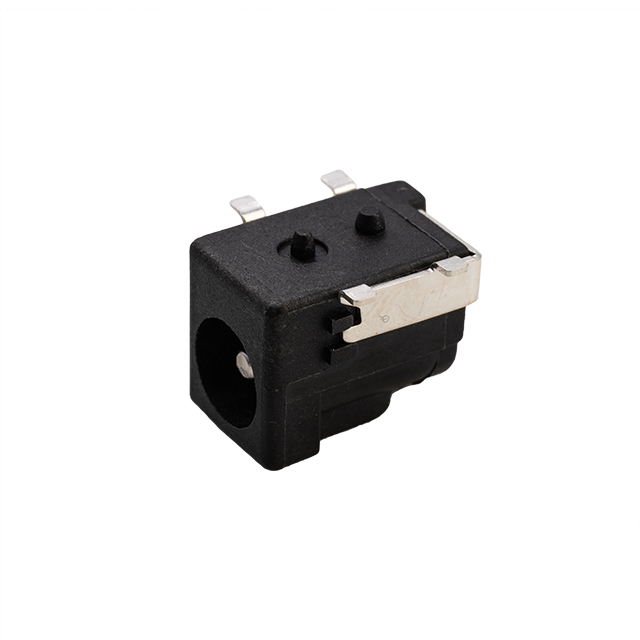

RDI, Inc. RDJ-0210A-CSMT
Images are for reference only
Manufacturer
Manufacturer No
RDJ-0210A-CSMT
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
2.0 MM SMT DC POWER JACK
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Surface Mount, Through Hole
Datasheet
Payment
Delivery
Gender
Male
Series
-
Features
Board Guide
Includes
-
Packaging
Tape & Reel (TR)
Shielding
Unshielded
Body Color
-
Termination
Solder, Solder Eyelet(s)
Thread Size
-
Manufacturer
RDI, Inc.
Body Material
-
Mounting Type
Surface Mount, Through Hole
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.256" (6.50mm OD)
Voltage - Rated
24VDC
Contact Material
Copper Alloy
Housing Material
Polyamide (PA6T), Nylon 6T
Insulation Color
-
Mounting Feature
-
Ingress Protection
-
Internal Switch(s)
Single Switch, Normally Closed
Mating Length/Depth
-
Current Rating (Amps)
3.5 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Nickel
Material Flammability Rating
-
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | - |
| Features | Board Guide |
| Includes | - |
| Packaging | Tape & Reel (TR) |
| Shielding | Unshielded |
| Body Color | - |
| Termination | Solder, Solder Eyelet(s) |
| Thread Size | - |
| Manufacturer | RDI, Inc. |
| Body Material | - |
| Mounting Type | Surface Mount, Through Hole |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.256" (6.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Insulation Color | - |
| Mounting Feature | - |
| Ingress Protection | - |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mating Length/Depth | - |
| Current Rating (Amps) | 3.5 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Nickel |
| Material Flammability Rating | - |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
