Step1: Product

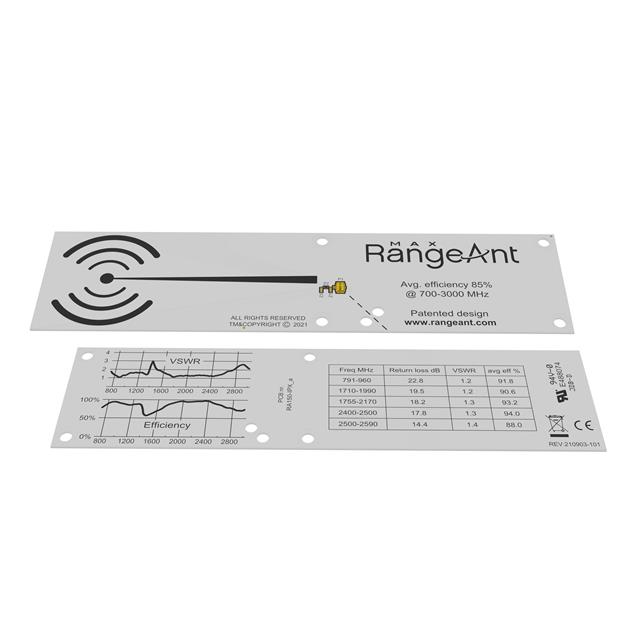

RangeAnt RA150-CX1
Images are for reference only
Gain
3dBi
VSWR
1.5, 1.6, 1.7
Series
MAX Wideband
Features
Cable - 150mm
Packaging
Bag
Return Loss
10.1dB, 11.2dB, 14.7dB, 15.6dB, 17dB, 28.9dB
Termination
SMA Male
Antenna Type
PCB Trace
Applications
2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee
Height (Max)
0.031" (0.80mm)
Manufacturer
RangeAnt
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz
Number of Bands
6
Ingress Protection
-
RF Family/Standard
802.15.4, Bluetooth, Cellular, Navigation, WiFi
Frequency (Center/Band)
875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi |
| VSWR | 1.5, 1.6, 1.7 |
| Series | MAX Wideband |
| Features | Cable - 150mm |
| Packaging | Bag |
| Return Loss | 10.1dB, 11.2dB, 14.7dB, 15.6dB, 17dB, 28.9dB |
| Termination | SMA Male |
| Antenna Type | PCB Trace |
| Applications | 2G, 3G, 4G/LTE, Bluetooth, GPS, IoT, LPWAN, Wi-Fi, ZigBee |
| Height (Max) | 0.031" (0.80mm) |
| Manufacturer | RangeAnt |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 791MHz ~ 960MHz, 1.559GHz ~ 1.61GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ , 2.5GHz ~ 2.69GHz |
| Number of Bands | 6 |
| Ingress Protection | - |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, Navigation, WiFi |
| Frequency (Center/Band) | 875.5MHz, 1.5845GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz |
