Step1: Product

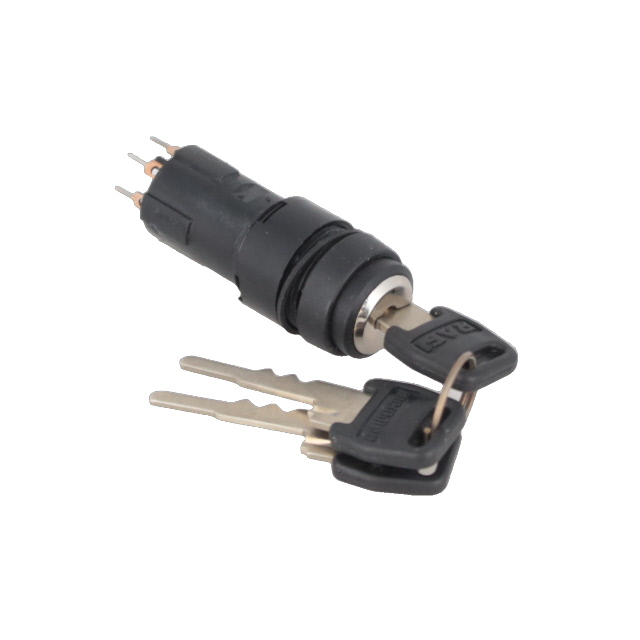

RAFI 1.10.117.617/0000
Images are for reference only
Manufacturer
Manufacturer No
1.10.117.617/0000
Packaging
Box
Description
SWITCH KEYLK 4POS SP3T 100MA 35V
Detailed Description
Keylock Switch 4 Position SP3T 100mA (AC/DC) 35 VAC 35 VDC Panel Mount
Datasheet
Payment
Delivery
Series
-
Circuit
SP3T
Features
-
Packaging
Box
Manufacturer
RAFI
Actuator Type
Flat Key
Mounting Type
Panel Mount
Angle of Throw
90°
Contact Finish
Gold
Contact Timing
Not Specified
Electrical Life
50,000 Cycles
Mechanical Life
50,000 Cycles
Switch Function
Off-On-On-On
Contact Material
-
Termination Style
Solder Lug
Base Product Number
1.10.117
Depth Behind Flange
-
Number of Positions
4
Voltage Rating - AC
35 V
Voltage Rating - DC
35 V
Current Rating (Amps)
100mA (AC/DC)
Operating Temperature
-25°C ~ 70°C
Key Removable Positions
Center
Panel Cutout Dimensions
Circular - 16.20mm Dia
| Attribute | Value |
|---|---|
| Series | - |
| Circuit | SP3T |
| Features | - |
| Packaging | Box |
| Manufacturer | RAFI |
| Actuator Type | Flat Key |
| Mounting Type | Panel Mount |
| Angle of Throw | 90° |
| Contact Finish | Gold |
| Contact Timing | Not Specified |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Switch Function | Off-On-On-On |
| Contact Material | - |
| Termination Style | Solder Lug |
| Base Product Number | 1.10.117 |
| Depth Behind Flange | - |
| Number of Positions | 4 |
| Voltage Rating - AC | 35 V |
| Voltage Rating - DC | 35 V |
| Current Rating (Amps) | 100mA (AC/DC) |
| Operating Temperature | -25°C ~ 70°C |
| Key Removable Positions | Center |
| Panel Cutout Dimensions | Circular - 16.20mm Dia |
