Step1: Product

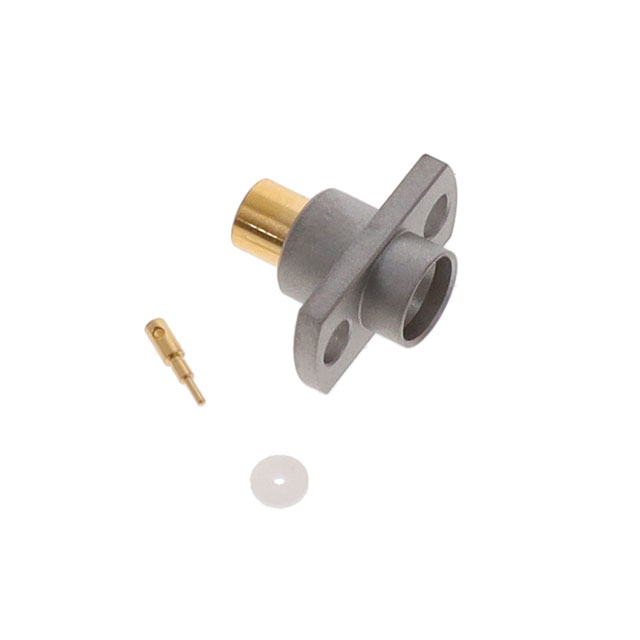

Radiall USA, Inc. R222252001W
Images are for reference only
Manufacturer
Manufacturer No
R222252001W
Availability
In Stock
Packaging
Box
Description
SMP / 2 HOLE FLANGE MALE JACK FU
Detailed Description
SMP Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Datasheet
Payment
Delivery
Mfr
Radiall USA, Inc.
Series
-
Features
Full Detent
Includes
-
Impedance
50 Ohms
Packaging
Box
Body Finish
Gold
Cable Group
RG-405 (.085" Semi Rigid)
Body Material
Brass, Stainless Steel
Housing Color
Gold, Silver
Mating Cycles
100
Mounting Type
Free Hanging (In-Line)
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
335 V
Connector Style
SMP
Frequency - Max
40 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Base Product Number
R22225
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Bronze
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Series | - |
| Features | Full Detent |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | Gold |
| Cable Group | RG-405 (.085" Semi Rigid) |
| Body Material | Brass, Stainless Steel |
| Housing Color | Gold, Silver |
| Mating Cycles | 100 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 335 V |
| Connector Style | SMP |
| Frequency - Max | 40 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | R22225 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Bronze |
