Step1: Product
Radiall USA, Inc. R201508040

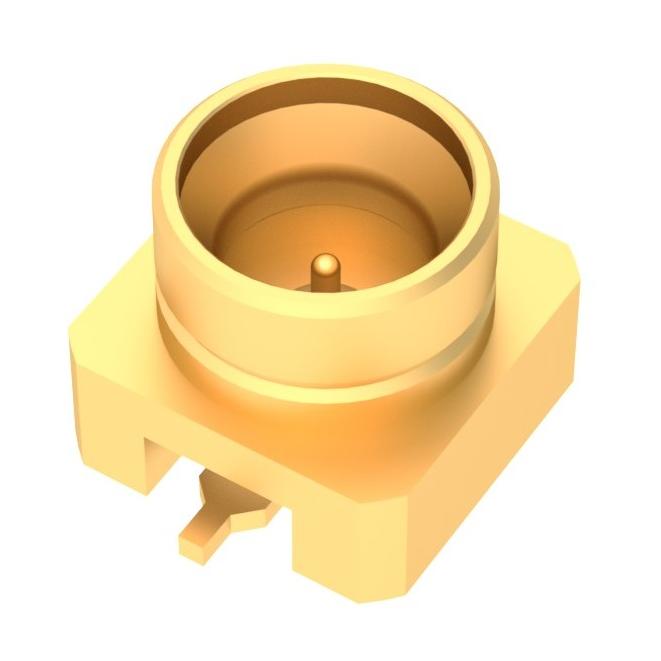

Images are for reference only
Manufacturer
Manufacturer No
R201508040
Packaging
Bulk
Description
SMPM / STRAIGHT MALE RECEPTACLE
Detailed Description
SMPM Connector Jack, Male Pin 50 Ohms Surface Mount Solder
Datasheet
Payment
Delivery
Mfr
Radiall USA, Inc.
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
-
Cable Group
-
Body Material
Brass
Housing Color
Silver
Mating Cycles
100
Mounting Type
Surface Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Insertion Loss
-
Voltage Rating
325 V
Connector Style
SMPM
Frequency - Max
65 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Solder
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
-
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | - |
| Cable Group | - |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 100 |
| Mounting Type | Surface Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | - |
| Voltage Rating | 325 V |
| Connector Style | SMPM |
| Frequency - Max | 65 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Solder |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | - |
| Center Contact Material | Beryllium Copper |
