Step1: Product

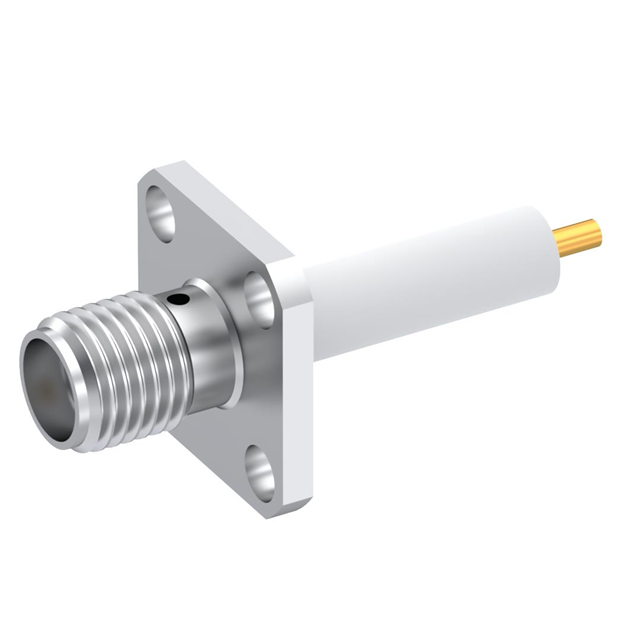

Radiall USA, Inc. R125415271
Images are for reference only
Manufacturer
Manufacturer No
R125415271
Availability
In Stock
Packaging
Box
Description
SMA / ADJUSTABLE SQUARE FLANGE J
Detailed Description
SMA Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
Datasheet
Payment
Delivery
Mfr
Radiall USA, Inc.
Series
-
Features
Extended Insulation
Includes
-
Impedance
50 Ohms
Packaging
Box
Body Finish
-
Cable Group
-
Body Material
Stainless Steel
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount, Through Hole
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
-
Voltage Rating
500 V
Connector Style
SMA
Frequency - Max
18 GHz
Number of Ports
1
Mounting Feature
Flange
Ingress Protection
-
Shield Termination
Solder
Base Product Number
R12541
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Series | - |
| Features | Extended Insulation |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Box |
| Body Finish | - |
| Cable Group | - |
| Body Material | Stainless Steel |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Voltage Rating | 500 V |
| Connector Style | SMA |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
| Mounting Feature | Flange |
| Ingress Protection | - |
| Shield Termination | Solder |
| Base Product Number | R12541 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
