Step1: Product

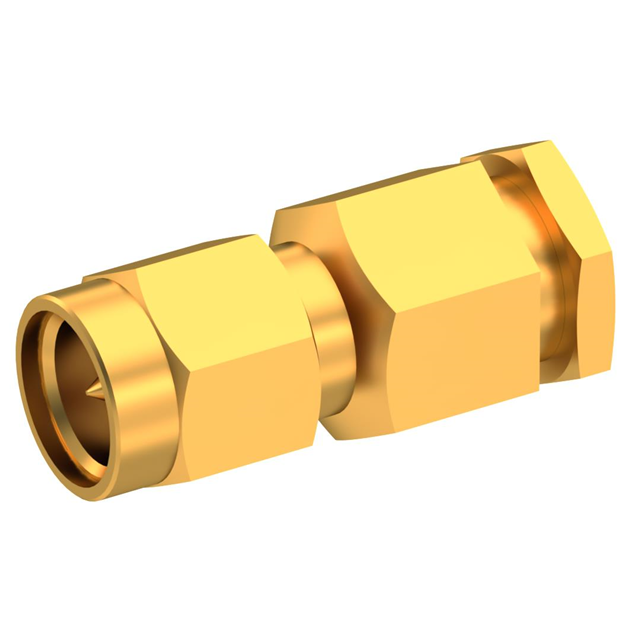

Radiall USA, Inc. 9201-1553-003
Images are for reference only
Manufacturer
Manufacturer No
9201-1553-003
Availability
In Stock
Packaging
Bulk
Description
SMA / STRAIGHT PLUG MALE CLAMP T
Detailed Description
SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Compression
Datasheet
Payment
Delivery
Mfr
Radiall USA, Inc.
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
RG-174, 188, 316
Body Material
Stainless Steel
Housing Color
Gold
Mating Cycles
500
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pin
Fastening Type
Threaded
Insertion Loss
-
Voltage Rating
250 V
Connector Style
SMA
Frequency - Max
12.4 GHz
Number of Ports
1
Mounting Feature
-
Ingress Protection
-
Shield Termination
Clamp
Base Product Number
9201-1553
Contact Termination
Compression
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | RG-174, 188, 316 |
| Body Material | Stainless Steel |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pin |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Voltage Rating | 250 V |
| Connector Style | SMA |
| Frequency - Max | 12.4 GHz |
| Number of Ports | 1 |
| Mounting Feature | - |
| Ingress Protection | - |
| Shield Termination | Clamp |
| Base Product Number | 9201-1553 |
| Contact Termination | Compression |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
