Step1: Product

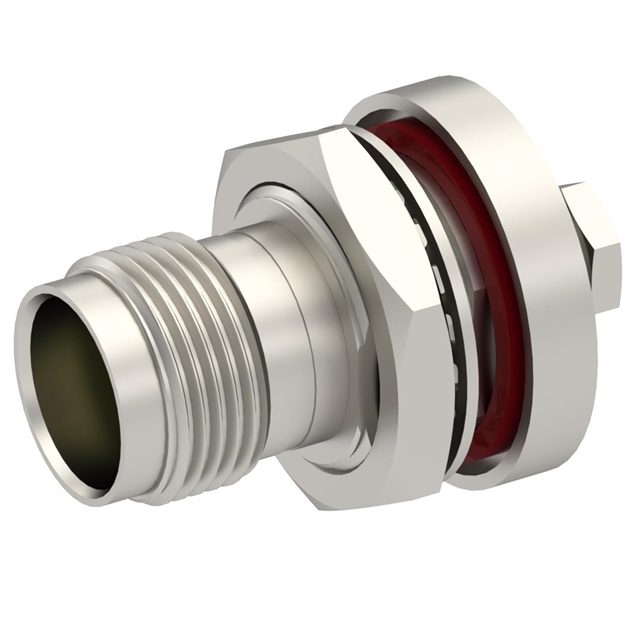

Radiall USA, Inc. 6001-7051-003
Images are for reference only
Manufacturer
Manufacturer No
6001-7051-003
Packaging
Bulk
Description
TNC / STRAIGHT JACK FEMALE CLAMP
Detailed Description
TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet
Payment
Delivery
Mfr
Radiall USA, Inc.
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Nickel
Cable Group
RG-174, 188, 316
Body Material
Brass
Housing Color
Silver
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Female Socket
Fastening Type
Threaded
Insertion Loss
-
Connector Style
TNC
Frequency - Max
11 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
-
Shield Termination
Clamp
Base Product Number
6001-7051
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Beryllium Copper
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Nickel |
| Cable Group | RG-174, 188, 316 |
| Body Material | Brass |
| Housing Color | Silver |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Female Socket |
| Fastening Type | Threaded |
| Insertion Loss | - |
| Connector Style | TNC |
| Frequency - Max | 11 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | - |
| Shield Termination | Clamp |
| Base Product Number | 6001-7051 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper |
