Step1: Product

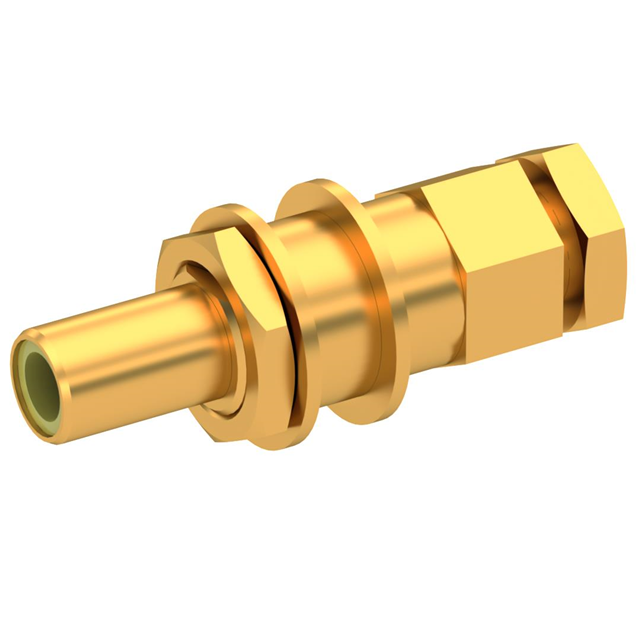

Radiall USA, Inc. 3003-1551-703
Images are for reference only
Manufacturer
Manufacturer No
3003-1551-703
Availability
In Stock
Packaging
Bulk
Description
SLB / STRAIGHT JACK MALE CLAMP T
Detailed Description
SLB Connector Jack, Male Pin 50 Ohms Panel Mount Solder
Datasheet
Payment
Delivery
Mfr
Radiall USA, Inc.
Series
-
Features
-
Includes
-
Impedance
50 Ohms
Packaging
Bulk
Body Finish
Gold
Cable Group
RG-174, 188, 316
Body Material
Brass
Housing Color
Gold
Mating Cycles
500
Mounting Type
Panel Mount
Connector Type
Jack, Male Pin
Fastening Type
Snap-On
Insertion Loss
0.30dB
Voltage Rating
335 V
Connector Style
SLB
Frequency - Max
4 GHz
Number of Ports
1
Mounting Feature
Bulkhead - Front Side Nut
Ingress Protection
-
Shield Termination
Clamp
Base Product Number
3003-1551
Contact Termination
Solder
Dielectric Material
Polytetrafluoroethylene (PTFE)
Operating Temperature
-65°C ~ 165°C
Center Contact Plating
Gold
Center Contact Material
Brass
| Attribute | Value |
|---|---|
| Mfr | Radiall USA, Inc. |
| Series | - |
| Features | - |
| Includes | - |
| Impedance | 50 Ohms |
| Packaging | Bulk |
| Body Finish | Gold |
| Cable Group | RG-174, 188, 316 |
| Body Material | Brass |
| Housing Color | Gold |
| Mating Cycles | 500 |
| Mounting Type | Panel Mount |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Insertion Loss | 0.30dB |
| Voltage Rating | 335 V |
| Connector Style | SLB |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Ingress Protection | - |
| Shield Termination | Clamp |
| Base Product Number | 3003-1551 |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Center Contact Plating | Gold |
| Center Contact Material | Brass |
