Step1: Product

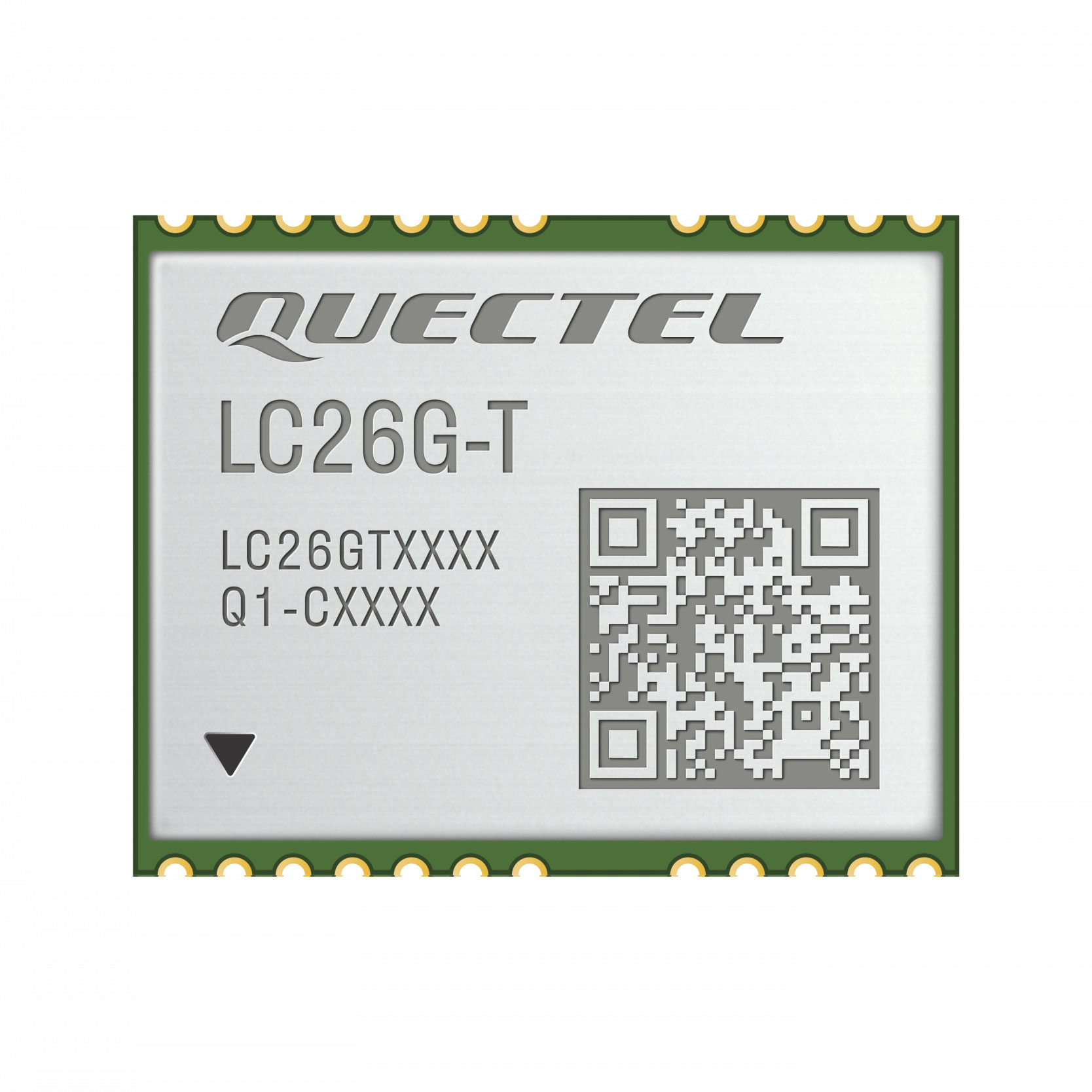

Quectel LC26GTAAMD
Images are for reference only
Manufacturer
Manufacturer No
LC26GTAAMD
Package
24-SMD Module
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
RF RECEIVER GNSS 24-SMD
Detailed Description
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS 1.561GHz, 1.575GHz, 1.598GHz, 1.605GHz -167dBm 921.6Mbps 24-LCC (16x12.2)
Datasheet
Payment
Delivery
Grade
-
Series
-
Features
-
Frequency
1.561GHz, 1.575GHz, 1.598GHz, 1.605GHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Memory Size
-
Sensitivity
-167dBm
Applications
GNSS Receiver
Manufacturer
Quectel
Mounting Type
Surface Mount
Qualification
-
Data Interface
UART
Package / Case
24-SMD Module
Data Rate (Max)
921.6Mbps
Voltage - Supply
2.8V ~ 4.3V
Antenna Connector
-
Current - Receiving
-
Operating Temperature
-40°C ~ 85°C
Modulation or Protocol
BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS
Supplier Device Package
24-LCC (16x12.2)
| Attribute | Value |
|---|---|
| Grade | - |
| Series | - |
| Features | - |
| Frequency | 1.561GHz, 1.575GHz, 1.598GHz, 1.605GHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Memory Size | - |
| Sensitivity | -167dBm |
| Applications | GNSS Receiver |
| Manufacturer | Quectel |
| Mounting Type | Surface Mount |
| Qualification | - |
| Data Interface | UART |
| Package / Case | 24-SMD Module |
| Data Rate (Max) | 921.6Mbps |
| Voltage - Supply | 2.8V ~ 4.3V |
| Antenna Connector | - |
| Current - Receiving | - |
| Operating Temperature | -40°C ~ 85°C |
| Modulation or Protocol | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS |
| Supplier Device Package | 24-LCC (16x12.2) |
